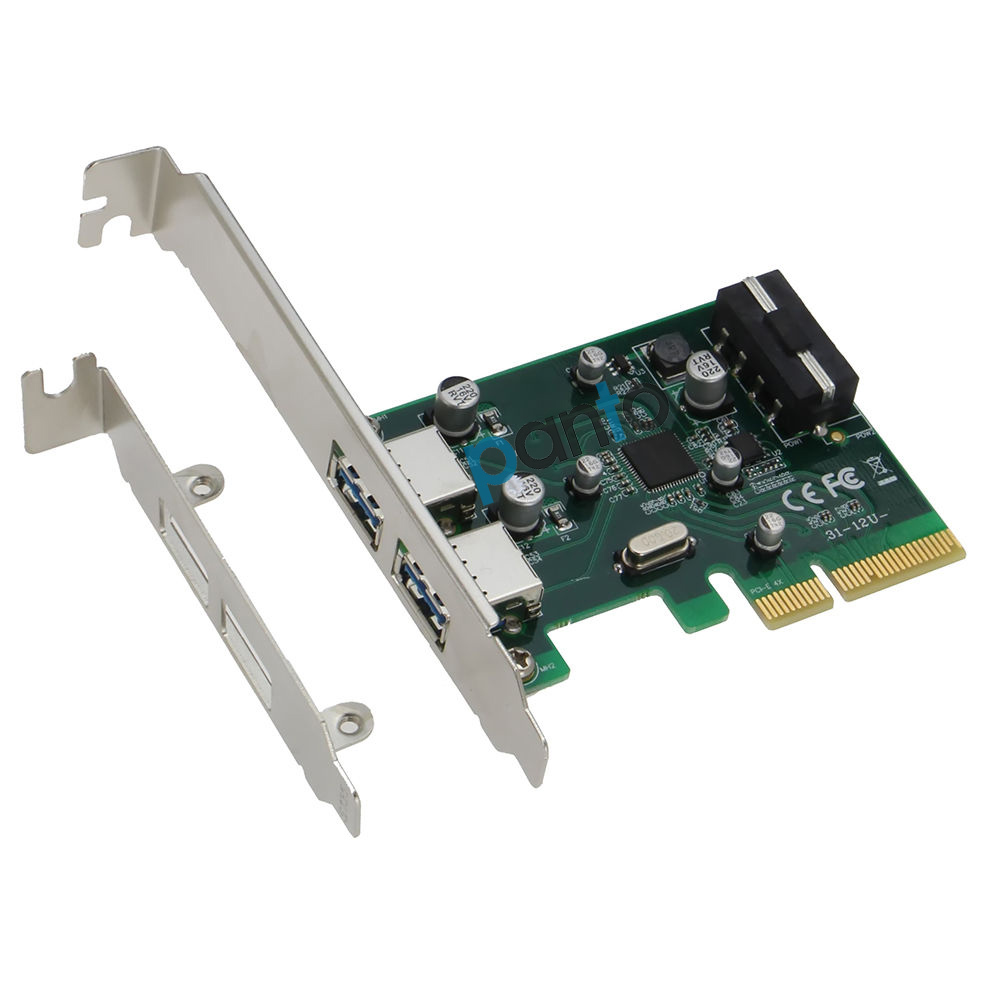

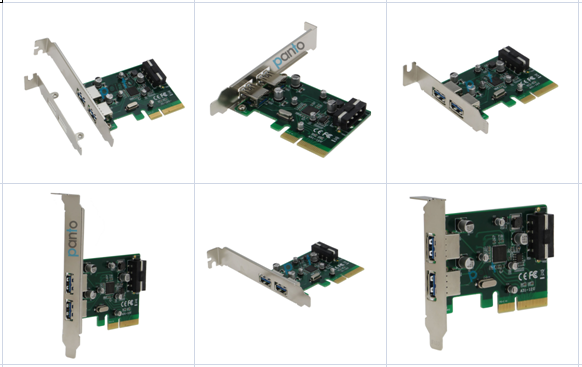

PCIE x4 to 2ports 10Gbps USB3.1 expansion card with low profile bracket

Product Name:

PCIE x4 to 2ports 10Gbps USB3.1 expansion card with low profile bracket

Number :

P-LA31-12U

Product Description:

PCIE x4 to 2ports 10Gbps USB3.1 expansion card with low profile bracket

Panto technology Co.,Ltd
P-LA31-12U Specification
Model:	P-LA31-12U
Product Name:	PCIe X4 to 2port USB3.1 (Type A)expansion card
Chipset:	ASM1142
input	PCIe X4
Output	2 port USB3.1 Type A
Transfer speed:	10Gbps/5Gbps/480Mbps
compatible with	USB3.0/USB2.0/USB1.1 and PCI EXPRESS 2.0
Color version:	green
output Current & Voltage	5V /1.5A
power supply	4 Pin molex Power or SATA15pin Connector
Weight	47g
OS support:	Win10/8.1/8/7/
Operating Temperature:	5℃~40℃
Storage Temperature:	~20℃~70℃
Features:
USB 3.1 a super fast and high-capacity data transfer solution.
Compliant with USB 3.1 specification.
Date transfer rate up to 10Gbps / 1GB/s.
Compatible with USB 3.0, 2.0 & 1.1 specification.
upport pci express gen2 X2 or Gen3 X1
Supports 10Gbps PCI-E bus with full duplex channel.
Stable and reliable ASMEDIA Chipset ASM1142.
2 USB 3.1 type A female connectors available.
PCI-E 4X connector fits PCI-E 4X, 8X or 16X slot.
Low-profile bracket available for small computer & server case, like 1U & 2U.
Plug & play and hot swapping capability.
Bus-powered mode and no external power required for most of peripherals.
4 pin Molex power connector available for some high
current consumption peripherals, like 3.5" HDD.
Support Windows 7 / 8 / 8.1 & Linux Kernal.
Please note that it is PCI-E 4X card and does not support PCI-E 1X slot.
Packing details
1.PCIe USB3.1 expansion card*1pcs
2.CD 1pcs 3.low profile bracket1pcs
