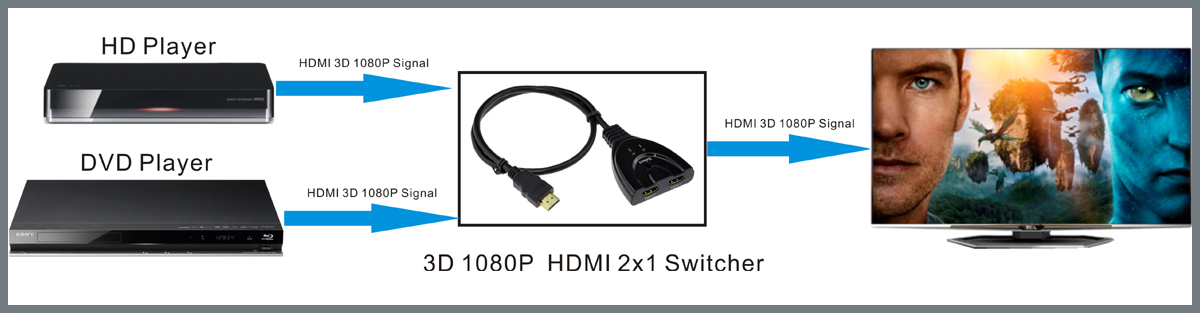

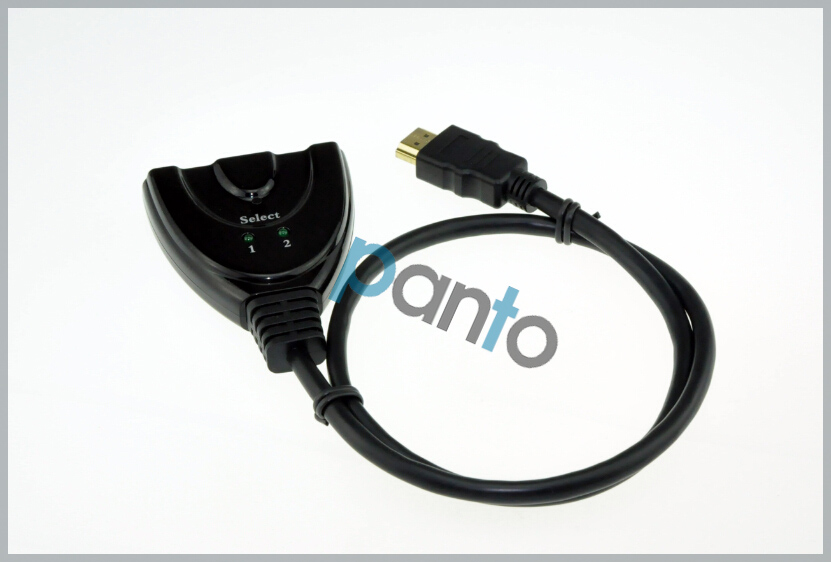

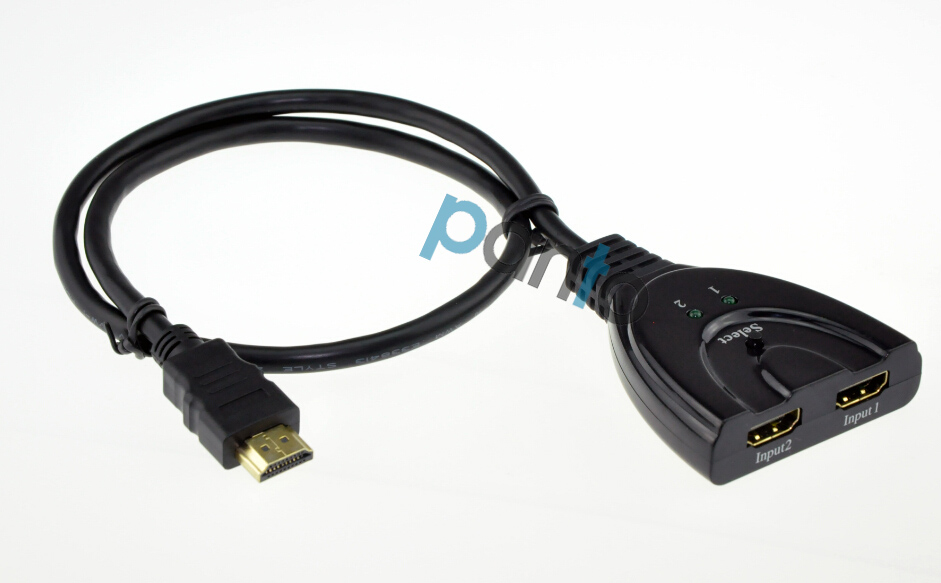

3D 1080P HDMI 2 way switcher adapter

Product Name:

3D 1080P HDMI 2 way switcher adapter

Number :

P-T-302B

Product Description:

3D 1080P HDMI 2 way switcher adapter

Features
This HDMI Amplifier Auto Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
1、Support 12-bit Deep Color, full 1080p
2、Support 3D display device.
3、Support HDCP
4、Multifunctional on switching : automatic or mechanical
5、Supports with HDMI1.3b.
6、High performance up to 2.5Gbps
7、Supports 15Meters HDMI Cable on both ends of the Switcher
8、Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved.
9、Controlled by Button, no power needed.

TECHNICAL PARAMETER IN DETAIL

Signal Inputs/Output	HDMI
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Maximum SingleLinkRange	1920X1200, 1080P
Output Video	HDMI1.3b+HDCP1.0/1.1 DVI1.0
VGA	640x480,800x600,1024x768,1920x1200
DTV/HDTV	480i/576i/480p/576p/720p/1080i/1080P，3D
HDMI Compliance	HDMI 1.3b
Frequency	Up to225MHz
Vertical FrequencyRange	60Hz
Video Amplifier Bandwidth	2.5Gpbs/225MHz
Resolutions(HDTV)	HDMI SWITCH
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Limited Warranty	1 Year Parts and Labor
Operating Temperature	0℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Ioutput Cable Length	60CM
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement	No power needed
Accessories Adapter
User Manual	English Version

Portugues
