USB3.1 type C to 2port mSATA SSD Raid0 Raid1 Enclosure

Product Name:

USB3.1 type C to 2port mSATA SSD Raid0 Raid1 Enclosure

Number :

P-LR31-1352S

Product Description:

USB3.1 type C to 2port mSATA SSD Raid0 Raid1 Enclosure

Panto technology Co.,Ltd
P-LR31-1352S Specification
Model:	P-LR31-1352S
Product Name:	USB3.1 Type-C TO 2Ports MSATA Raid SSD Enclosure
Chipset:	ASM1352R+1542
Internal interface:	MSATA*2
Output interface:	USB3.1 Type C
Transfer speed:	10Gbps/5Gbps/480mbps
Enclosure material:	aluminum-magnesium alloy

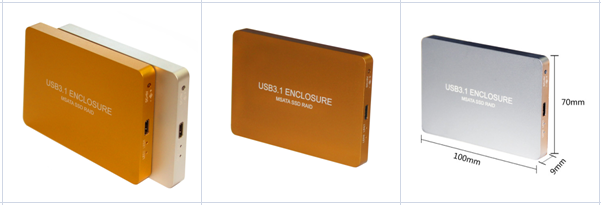

Product measure:	100mm* 70mm* 9mm
Color version:	Gold /silver
Product weight:	94g
Applied SSD version:	3030/3050mm
Support model:	Raid0,Raid1,PM
OS support:	All WINDOWS/ Linux / Mac (free driver)
Features:
USB 3.1 a super fast and high-capacity data transfer solution.
In default RAID0 mode data transfer speed up to 10Gbps.
Supports 2 mSATA SSD at the same time.
Compliant with USB 3.1 specification.
Data transfer rate up to 10Gbps for USB 3.1.
Compliant with SATA 3.2 specification.
Data transfer rate up to 6.0Gbps for SATA 3.2.
Stable chipset ASM1352R+1452
Supports RAID0 (default), RAID1 & PM.
Supports 30mm half-height & 50mm full-height SSD.
No capacity limited for SSD card.
2 LED power indicators available.
5V DC jack available for more stable power.
Easy installation & no driver required.
No additional power required.
Support boot function.
Supports Plug & Play and Hot-Swapping.
Supports any OS, like Mac Windows, WinCE, Mac & Linux etc.
Please note that it supports mSATA Mini PCI-E SATA SSD only. It does NOT supports Mini PCI-E PATA, 1.8" Micro SATA & Airbook SSD.
Please note that data transfer speed reaches up to 10Gbps only in RAID0 mode, NOT in RAID1 & PM modes.
Packing details
1.SSD Enclosure *1pcs
2.USB3.0 AM To Type-C 1(cable length:25CM) 1pcs
3.Screwdriver*1pcs
4. Screws *4set
