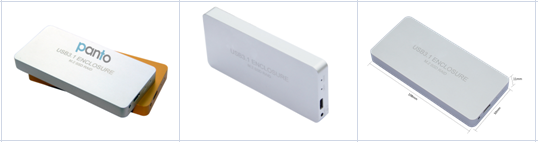

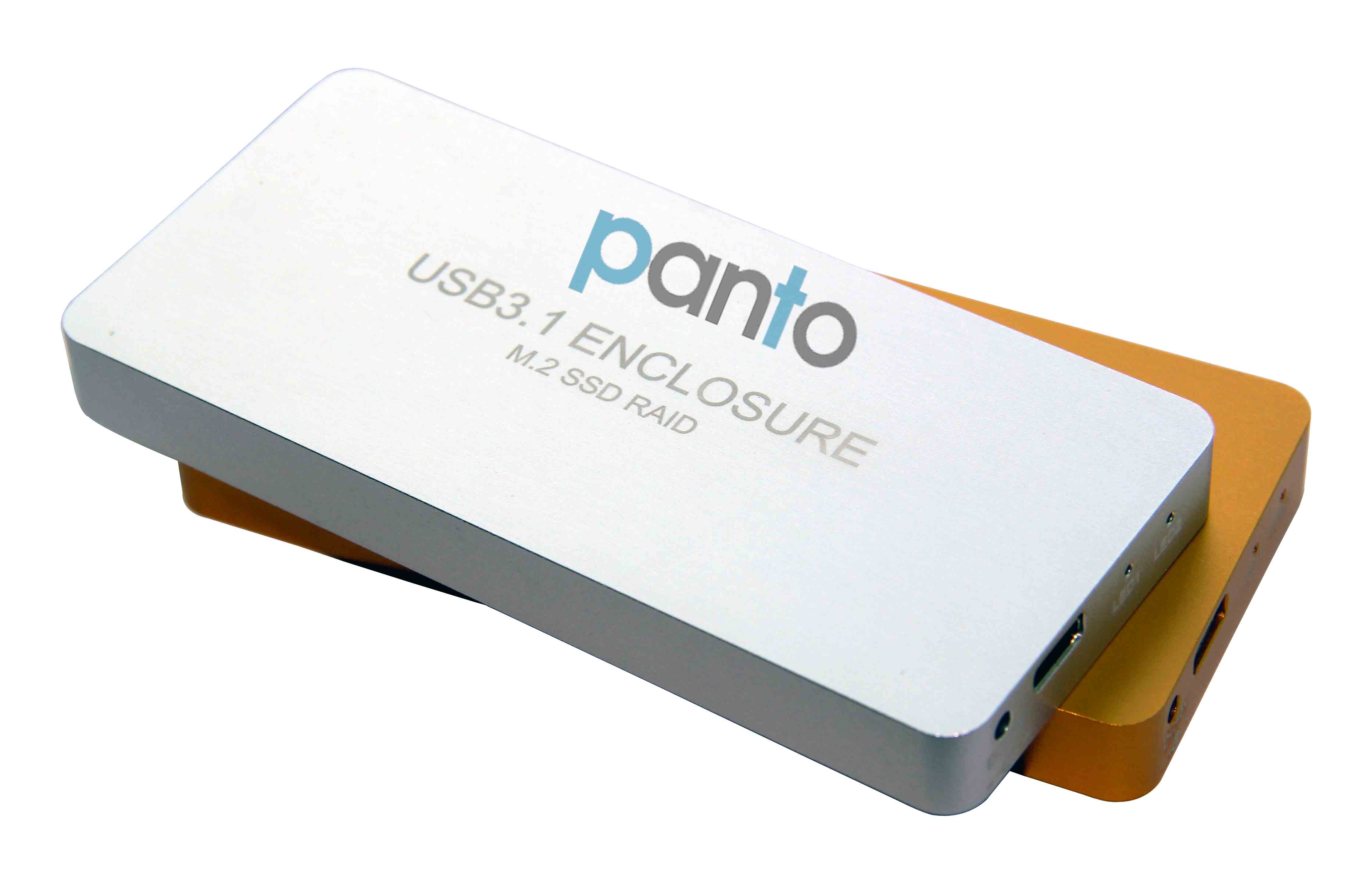

USB3.1 type C to 2port NGFF M.2 SSD Raid0 Raid1 Enclosure

Product Name:

USB3.1 type C to 2port NGFF M.2 SSD Raid0 Raid1 Enclosure

Number :

P-LR31-1352N

Product Description:

USB3.1 type C to 2port NGFF M.2 SSD Raid0 Raid1 Enclosure

Panto technology Co.,Ltd
P-LR31-1352N Specification
Model:	P-LR31-1352N
Product Name:	USB3.1 Type-C TO 2Ports M.2(NGFF) RAID SSD Enclosure
Chipset:	ASM1352R+1542
Key ID	Key B
Internal interface:	female Key B NGFF(M.2)
Output interface:	USB3.1 Type C
Transfer speed:	10Gbps/5Gbps/480Mbps
Enclosure material:	aluminum-magnesium alloy
Product measure:	108mm * 50mm * 11mm
Color version:	Gold /silver
Product weight:	62g
Applied SSD version:	2230mm/42mm/60mm/80mm NGFF(M.2)
Support model:	Raid0,Raid1,PM
OS support:	All WINDOWS/ Linux / Mac (free driver)
Features:
USB 3.1 a super fast and high-capacity data transfer solution.
In default RAID0 mode data transfer speed up to 10Gbps.
Supports 2 NGFF SSD at the same time.
Compliant with USB 3.1 specification.
Data transfer rate up to 10Gbps for USB 3.1.
Compliant with SATA 3.2 specification.
Data transfer rate up to 6.0Gbps for SATA 3.2.
Stable chipset ASM1352R+1452
Supports RAID0 (default), RAID1 & PM.
Supports SATA-based NGFF SSD.
Supports B Key NGFF SSD.
Supports 2230, 2242, 2260 & 2280 size NGFF SSD.
2 LED power/status indicators available.
5V DC jack available for more stable power.
Easy installation & no driver required.
No additional power required.
Support boot function.
Supports Plug & Play and Hot-Swapping.
Supports any OS, like Mac Windows, WinCE & Linux etc.
Please note that it supports SATA-based B Key SSD only. It does NOT support PCI-E based B key & any M key SSD.
Packing details
1.SSD Enclosure *1pcs
2.USB3.0 AM To Type-C 1(cable length:25CM) 1pcs
3.Screwdriver*1pcs
4. Screws *2set
