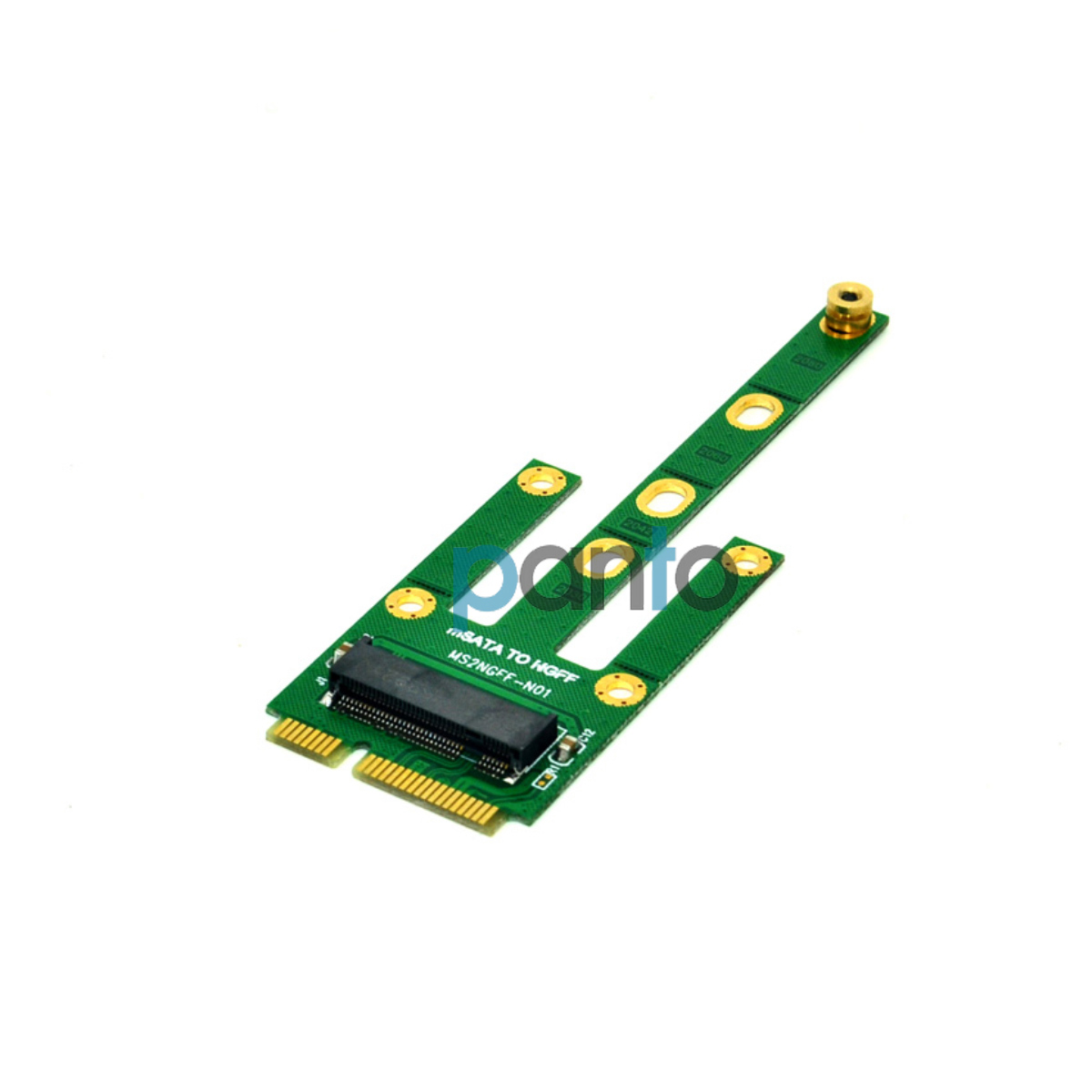

mSATA to M.2 NGFF Key B converter card

Product Name:

mSATA to M.2 NGFF Key B converter card

Number :

MS2NGFF-N01

Product Description:

mSATA to M.2 NGFF Key B converter card

Panto Technology Co.,Ltd
Brand	Panto
Model No.	MS2NGFF-N01
Type	mSATA to NGFF(M.2) SSD Key-B converter card
port	expand 1 port female NGFF(M.2) solt
transfer speed	6Gbps
Input	mSATA
Output	Female NGFF(M.2) solt
Color	Green
Key features

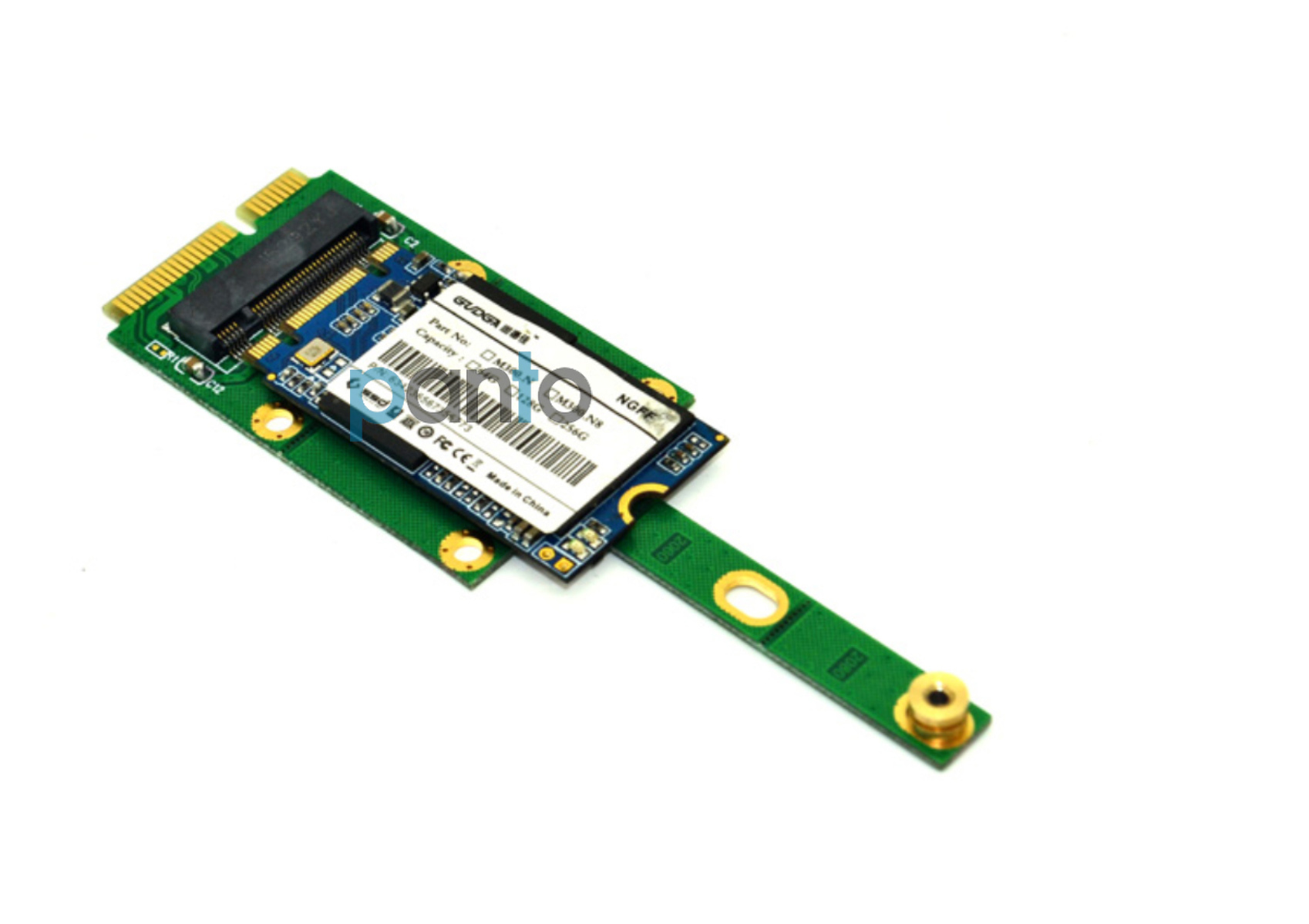

1.Connects mSATA miniPCIE motherboard to NGFF B Key SSD
2.Compliant with PCI Express M.2 specification 1.0.
3.Compliant with SATA III specification.
4.Supports data transfer up to 6.0Gb/s.
5.Supports SATA-based NGFF SSD.
6.Supports 2230, 2242, 2260 & 2280 size NGFF SSD.
7.One NGFF M.2 B Key socket and one mSATA Mini PCI-E male connector available.
8.4 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card.
9.4 screw holes available to fix PCB board.
10.Easy installation & no driver required.
11.Support boot function.
12.Supports any OS, like Windows, WinCE & Linux etc.
*Please note that it supports SATA-based B Key SSD only. It does NOT support PCI-E based B key & any M key SSD*
Packing Details.
1.1X mSATA to NGFF(M.2) SSD Key-B converter card
2. 1X Screw Drive.
3. 1X Screw.
