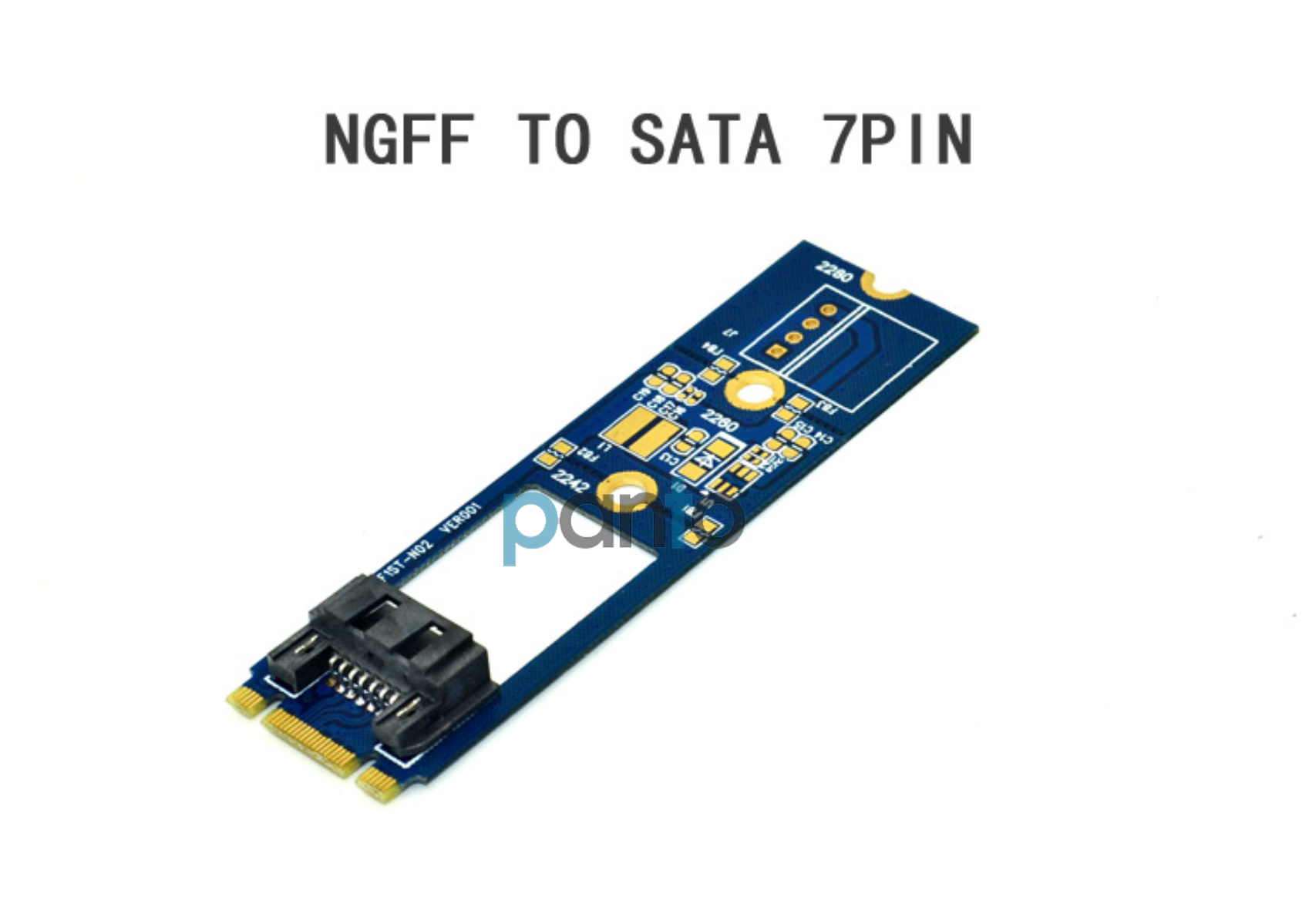

M.2 NGFF Key B to SATA III converter card
Product Description:
M.2 NGFF Key B to SATA III converter card


Panto Technology Co.,Ltd | |
Brand | Panto |
Model No. | NGFF1ST-N02 |
Type | NGFF(M.2) Key B to SATA III converter card |
port | expand 1 port SATA3.0 |
transfer speed | 6Gbps |
Input | NGFF(M.2) Key B |
Output | SATA3.0 |
Color | Green |
Key features | |

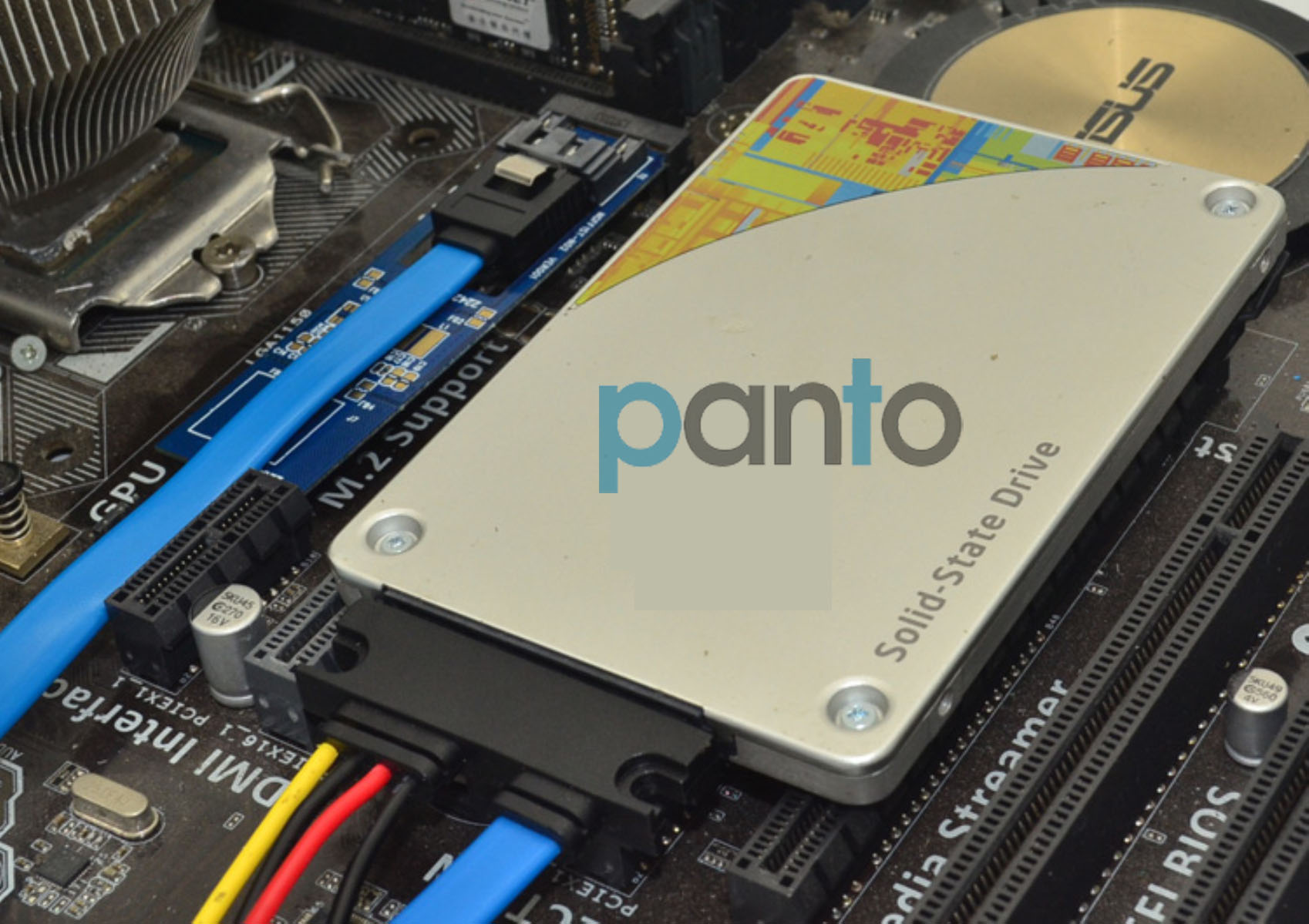

1.Connects NGFF (M.2) Key B motherboard to SATA III device | |
2.Compliant with PCI Express M.2 specification 1.0. | |
3.Compliant with SATA 3.0 specification. | |
4.Supports data transfer up to 6.0Gb/s. | |
5.Supports socket 2 (B Key) | |

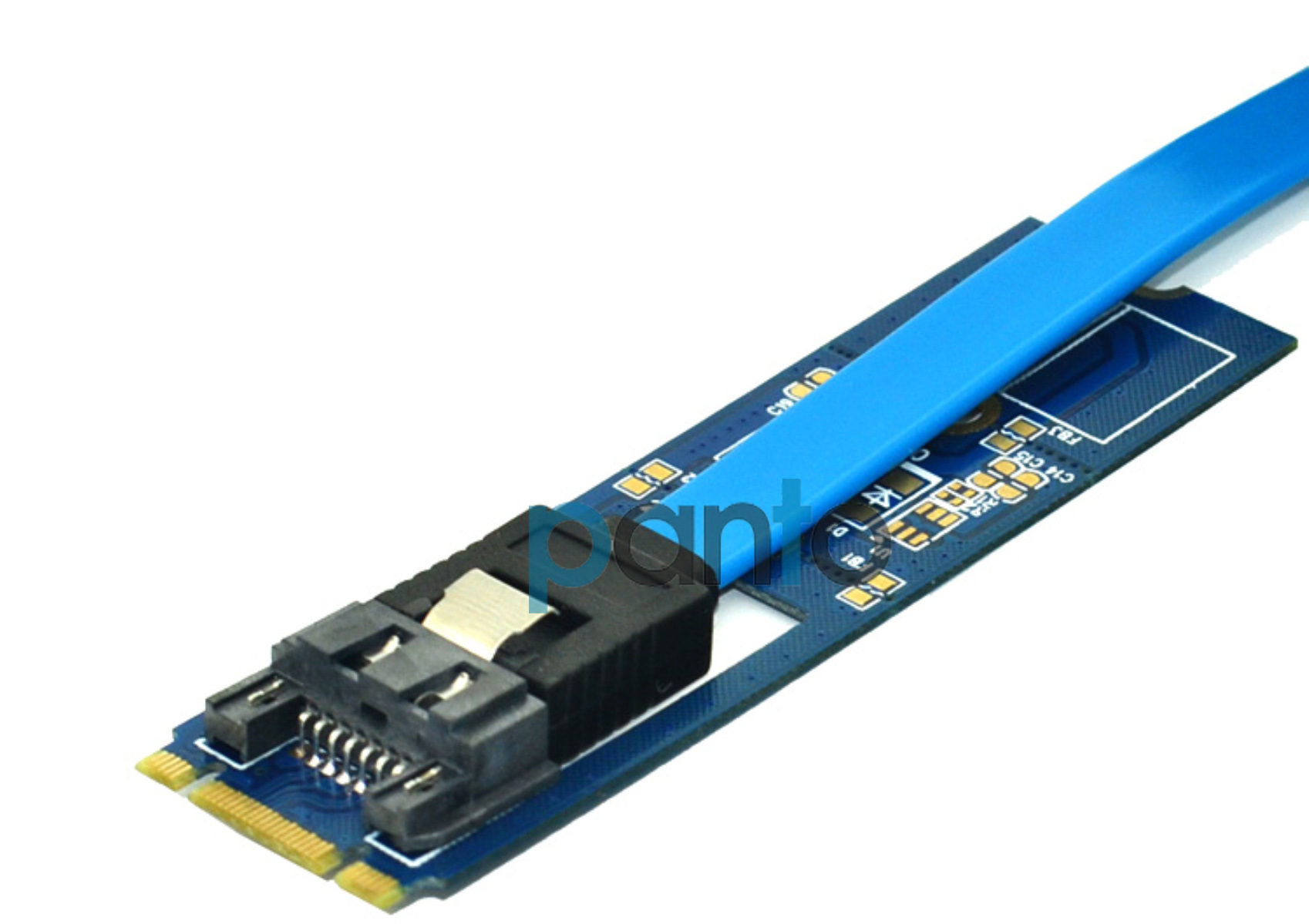

6.One SATA 3.0 and one NGFF M.2 male connectors available. | |
7.4 screw holes 2230/2242/2260/2280 available. | |
8.Easy installation & no driver required. | |
9.Supports any OS, like Windows, WinCE & Linux etc. | |
Packing Details. | |
1.1X NGFF(M.2) to SATA3.0 converter card | |
2. 1X Screw. |
