Panto Technology Co.,Limited

reliable & professional computer accessories supplier

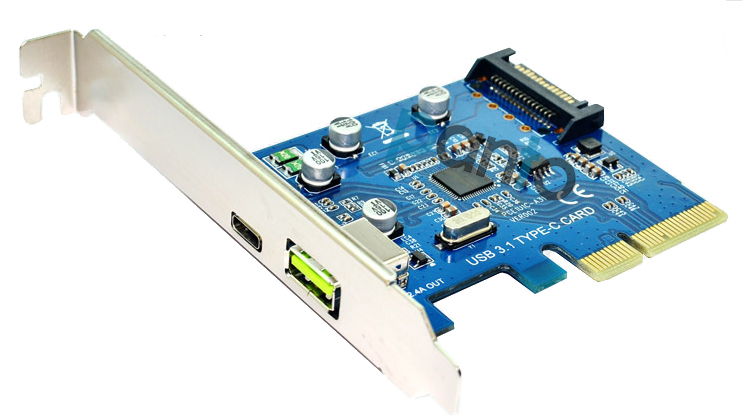

PCIE x4 to 1port 10Gbps USB3.1 Type C + 2.4A USB charger expansion card

Product Name:

PCIE x4 to 1port 10Gbps USB3.1 Type C + 2.4A USB charger expansion card

Number :

PCE1U1C-A31

Product Description:

PCIE x4 to 1port 10Gbps USB3.1 Type C + 2.4A USB charger expansion card

Panto Technology Co.,Ltd
Specification(PCE1U1C-A31)
Brand	Panto
Model No.	PCE1U1C-A31
Type	PCIE USB3.1 expansion card
input	PCIE X4 Gen 2
output	USB3.1 Type C+ Fast USB type A Charger
Support interface	PCIE X4 X8 X16
Max transfer speed	10Gbps
Power support	SATA connector
Chipset	ASM1142
Color	Blue
Key features
1. Meet the PCI Express dual-channel (X2) Base Specification Revision 2.0 2. Compliant with Universal Serial Bus 3.1 specification Gen2 3. Meet the USB Attached SCSI Protocol Revision 1.0 4. compatible xHCI (eXtensible Host Controller Interface) Specification Revision 1.1 5. Support multiple USB 3.1,3.0, USB 2.0 and USB 1.1 devices simultaneously 6. Supports USB data transfer rate of 10G / 5G / 480M / 12M / 1.5M bps of 7. Built-in SATA interfaces USB powered Power Output: 5V 2.5A maximum 10. Support WinXP / Vista / 7/8 / 8.1 / 10 32 / 64bit MAC10.8 more systems.








Packing Details.
1. PCIe expansion card *1pc
2.CD disk *1pc
