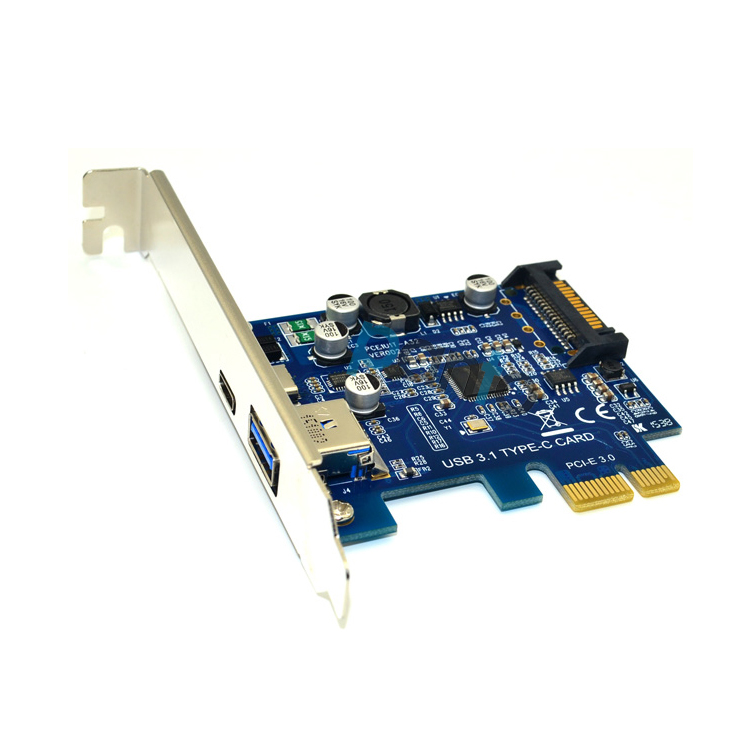

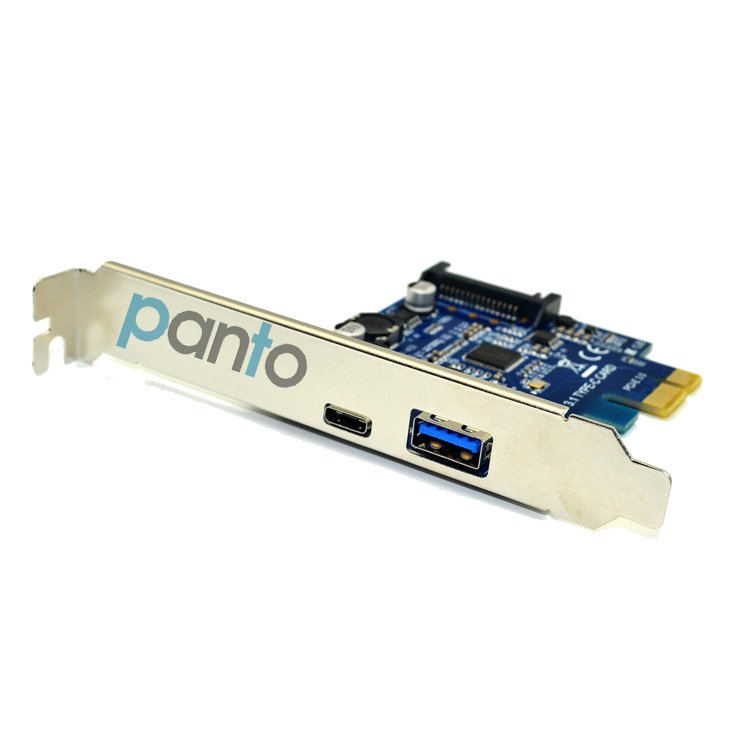

PCIE x1 to 2ports 10Gbps USB3.1 Type A + C expansion card

Product Name:

PCIE x1 to 2ports 10Gbps USB3.1 Type A + C expansion card

Number :

P-PCE1U1T-A32

Product Description:

PCIE x1 to 2ports 10Gbps USB3.1 Type A + C expansion card

Panto Technology Co.,Ltd
Specification(PCE1U1T-A32)
Brand	Panto
Model No.	PCE1U1T-A32
Type	PCIE USB3.1 expansion card
input	PCIE X1 Gen 2
output	USB3.1 Type C+ USB3.1 Type A
Support interface	PCIE X1 X2 X4 X8 X16
Max transfer speed	10Gbps
Power support	SATA connector
Chipset	ASM1142
Color	Blue
Key features
1. Meet the PCI Express dual-channel (X2) Base Specification Revision 2.0 2. Compliant with Universal Serial Bus 3.1 specification Gen2 3. Meet the USB Attached SCSI Protocol Revision 1.0 4. compatible xHCI (eXtensible Host Controller Interface) Specification Revision 1.1 5. Support multiple USB 3.1,3.0, USB 2.0 and USB 1.1 devices simultaneously 6. Supports USB data transfer rate of 10G / 5G / 480M / 12M / 1.5M bps of 7. Built-in SATA interfaces USB powered Power Output: 5V 2.5A maximum 10. Support WinXP / Vista / 7/8 / 8.1 / 10 32 / 64bit MAC10.8 more systems. Noted:Please noted that speed could be arrival in 10Gbps base on PCIE 3.0 motherboard








Packing Details.
1. PCIe expansion card *1pc
2.CD disk *1pc
