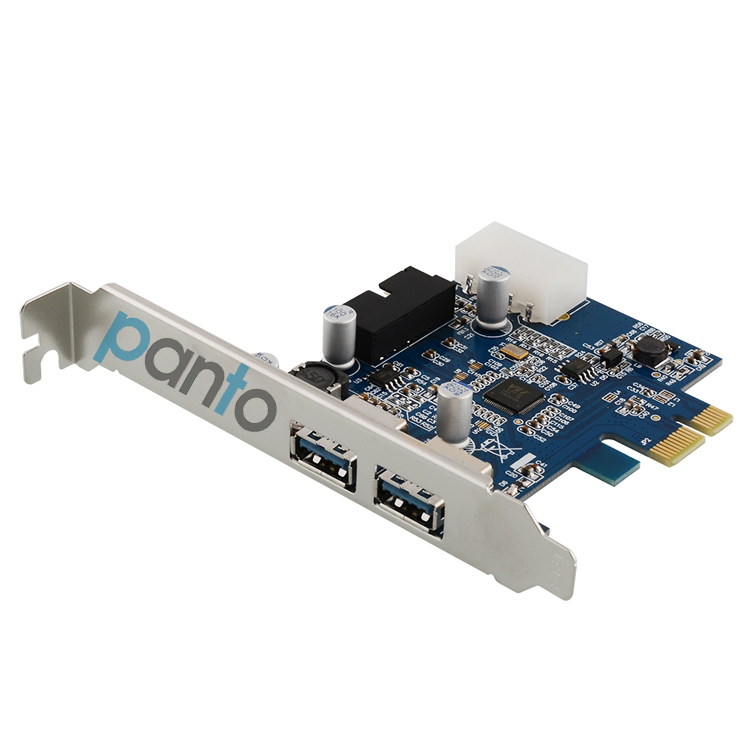

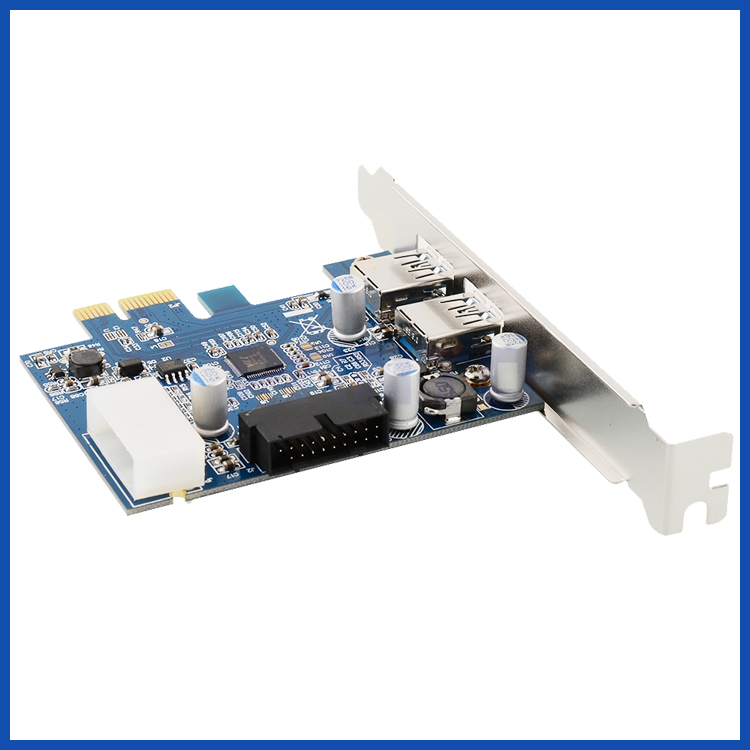

PCIE x1 to 2ports USB3.0 + 19pin USB3.0 header expansion card

Product Name:

PCIE x1 to 2ports USB3.0 + 19pin USB3.0 header expansion card

Number :

P-LT103

Product Description:

PCIE x1 to 2ports USB3.0 + 19pin USB3.0 header expansion card

Description
Upgrade your PC with support for the latest in USB technology with a 4-Port SuperSpeed USB 3.0 PCI Express Adapter Controller Card. SuperSpeed USB 3.0 boasts data transfer rates of up to 5Gbps- more than 10X that of its predecessor. With quick and easy installation, you'll enjoy the lightning fast transfer rates of USB 3.0 devices performing at full speed potential.

Features and Specifications
Backwards compatible with USB 2.0 USB1.1 devices
Supports simultaneous operation of multiple USB 3.0 and USB 2.0 devices
Supports 4 downstream ports for all speeds
Supports Windows 7/Vista/XP 32/64-bit, Server 2003-2008 32/64-bit
Bus-powered mode and no external power required for most peripherals
Molex power required
Data Transfer Rate: up to 5Gbps
Output: 5V/900mA MAX (each USB port)
External Ports: 4x USB 3.0
Internal Ports: 1x 4pin Power Connector
Host Interface: PCI Express (PCI-E)
Chipset: NEC D720201

Package Includes:
1x 4-Port USB 3.0 PCI Express Controller Card
1x Installation CD
