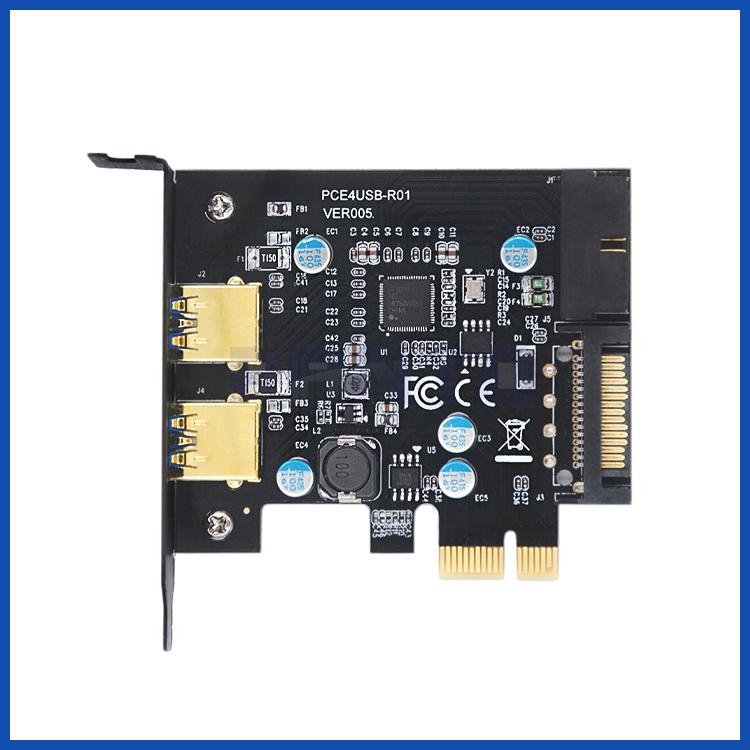

pci express to usb3.0 card 2 port USB3.0 Gold connector +19pin usb3.0 header with SATA 15pin power 5Gbps converter

Product Name:

pci express to usb3.0 card 2 port USB3.0 Gold connector +19pin usb3.0 header with SATA 15pin power 5Gbps converter

Number :

P-PCE4USB-R01-005

Product Description:

pci express to usb3.0 card 2 port USB3.0 Gold connector +19pin usb3.0 header with SATA 15pin power 5Gbps converter

Product Model
Model Number	P-PCE4USB-R01-005
Warranty Information
Warranty	18 months
Hardware
Bus Type	PCI Express

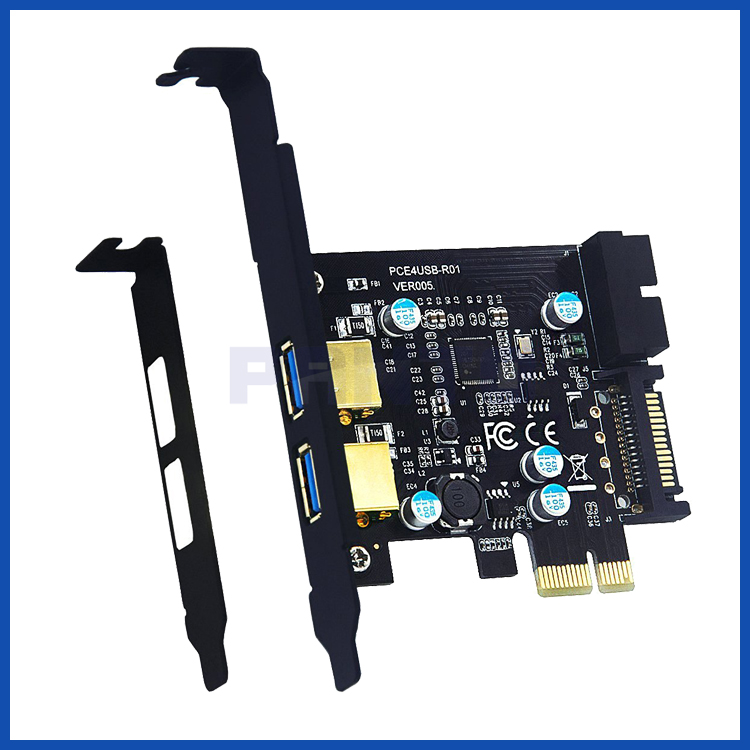

Card Type	Standard Profile (Low Profile bracket optional)
Chipset ID	Renesas uPD720201
Industry Standards	USB 3.0 Specification Rev. 1.0
	PCI Express Base Specification Rev. 2.0
	Intel xHCI Specification Rev. 1.0
	UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface	USB 3.0
Port Style	Integrated on Card
Ports	2+2
Performance
Maximum Data Transfer Rate	5 Gbps
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	2 - USB 3.0 A (9 pin; 5Gbps) Female
Internal Ports	1 - USB 3.0 19 pin( 5Gbps) male
Internal Ports	1 - SATA 15pin Plug
Software
OS Compatibility	Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), Linux
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps.
System and Cable Requirements	PCI Express enabled computer or server with an available PCI Express x1 slot or higher ( x4, x8, x16)
System and Cable Requirements	SATA 15pin power connector
Package content
Included in Package	1 - 4 Port PCI Express USB 3.0 Card
Included in Package	1 - Driver CD
