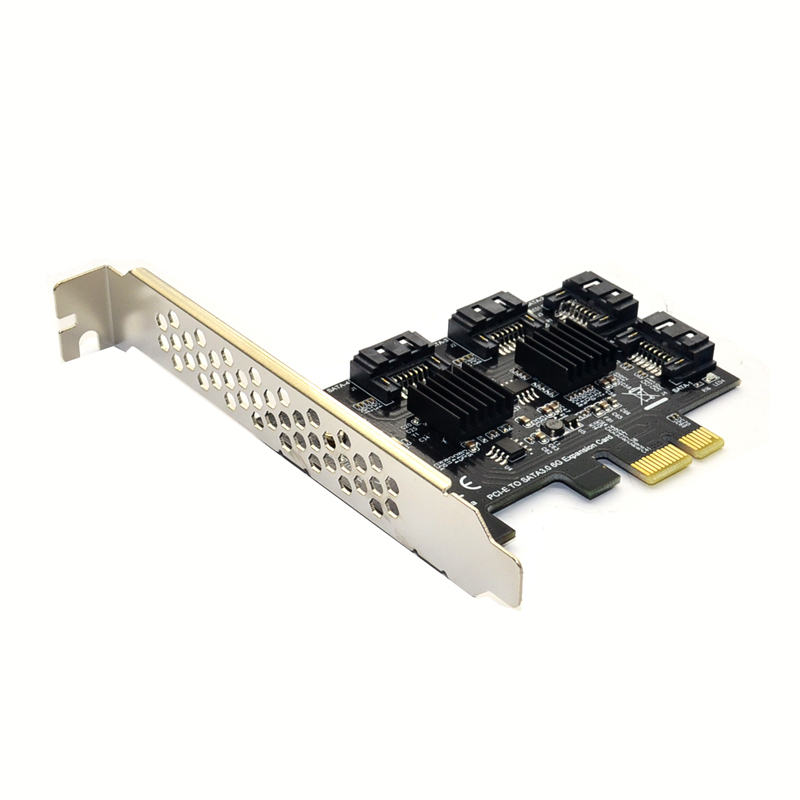

2018 latest PCIE pci express pci-e x1 to 4 port SATA III SATA 3.0 host converter controller adapter card

Product Name:

2018 latest PCIE pci express pci-e x1 to 4 port SATA III SATA 3.0 host converter controller adapter card

Number :

P-PCE4SAT-A01

Product Description:

2018 latest PCIE pci express pci-e x1 to 4 port SATA III SATA 3.0 host converter controller adapter card

Product Model
Model Number	P-PCE4SAT-A01-003
Warranty Information
Warranty	18 months
Hardware
Bus Type	PCI Express
Card Type	Standard Profile ( Low Profile bracket optional )
Chipset ID	ASMEDIA ASM1061+1093
Industry Standards	Serial ATA Specification 3.0
	PCI Express Base Specification Rev. 2.0
	AHCI Compliant
	Support Native Command Queuing(NCQ)
Interface	SATA III
Port Style	Integrated on Card
Ports	4
Performance
Maximum Data Transfer Rate	6 Gbps
Type and Rate	SATA III - 6 Gbit/s (LED indicated)
RAID	NO
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
Internal Ports	4 - SATA (7 pin; Data) Plug
Software
OS Compatibility	Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps.
System and Cable Requirements	PCI Express enabled computer or server with an available PCI Express x1 slot or higher ( x4, x8, x16)
Package content
Included in Package	1 - 4 Port PCI Express SATA III Card
Included in Package	1 - Driver CD
