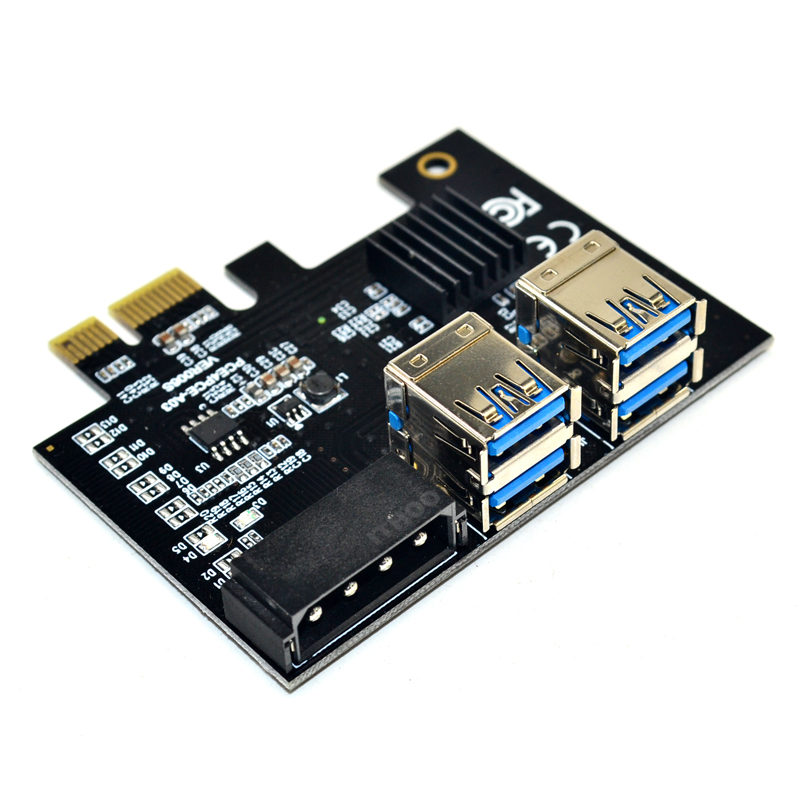

Panto Pcie Express 1x to 4-port USB3.0 Extender Riser Card Adapter Port Multiplier for BTC Miner

Shenzhen Panto Technology Co.,Ltd
Specification(P-PCE4PCE-A03-V06S)
Brand Panto
Model No. PCE4PCE-A01-V06S
Type PCIE Riser card for BTC Miner

Chipset:ASM1184E
input PCIE x1
output  4*PCIE x16
Color Black

Features:
4 Slots brings great extendability.
Plugs directly to the board without any extender cable, can be fixed to the case.
PCI-E slot power solution, no extra power cable needed.
Only one cable to the slot, easy and convenient to settle and install.
With IC heat radiator.

Specification:
Bus Port: PCI-E
Port Quantity: 4 X PCI-E USB
Size: approx. 120 X 66 X 21 mm/4.72 X 2.6 X 0.83"
Net Weight: approx. 41 g
Gross Weight: approx. 73 g
Package Size: approx. 130 X 90 X 25 mm/5.12 X 3.54 X 0.98"
Supported OS: DOS, Linux, Windows XP/7/8/10

Packing Details.
1.PCIE 1to 4 riser card * 1pcs
