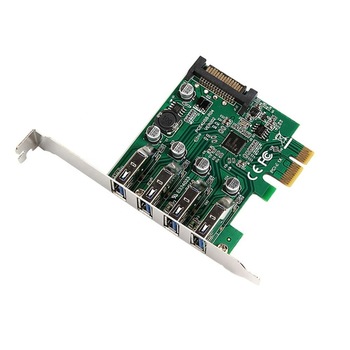

PCI-E to 4-Port USB3.0 Hub Card Expansion Adapter for Desktop with SATA 15pin power 5Gbps adapter card low bracket profile

Product Name:

PCI-E to 4-Port USB3.0 Hub Card Expansion Adapter for Desktop with SATA 15pin power 5Gbps adapter card low bracket profile

Number :

P-PCE4USB-R004

Product Description:

PCI-E to 4-Port USB3.0 Hub Card Expansion Adapter for Desktop with SATA 15pin power 5Gbps adapter card low profile bracket

Product Model
Model Number	P-PCE4USB-R04-002
Warranty Information
Warranty	18 months
Hardware
Bus Type	PCI Express
Card Type	Standard Profile (Low Profile bracket optional)
Chipset ID	Renesas uPD720201
Industry Standards	USB 3.0 Specification Rev. 1.0
	PCI Express Base Specification Rev. 2.0
	Intel xHCI Specification Rev. 1.0
	UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface	USB 3.0
Port Style	Integrated on Card
Ports	4
Performance
Maximum Data Transfer Rate	5 Gbps
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	4 - USB 3.0 A (9 pin; 5Gbps) Female
Internal Ports	1 - SATA 15pin Power Plug
Software
OS Compatibility	Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), Linux
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps.
System and Cable Requirements	PCI Express enabled computer or server with an available PCI Express x1 slot or higher ( x4, x8, x16)
System and Cable Requirements	SATA 15pin power connector
Package content
Included in Package	1 - 4 Port PCI Express USB 3.0 Card
Included in Package	1 - Driver CD
