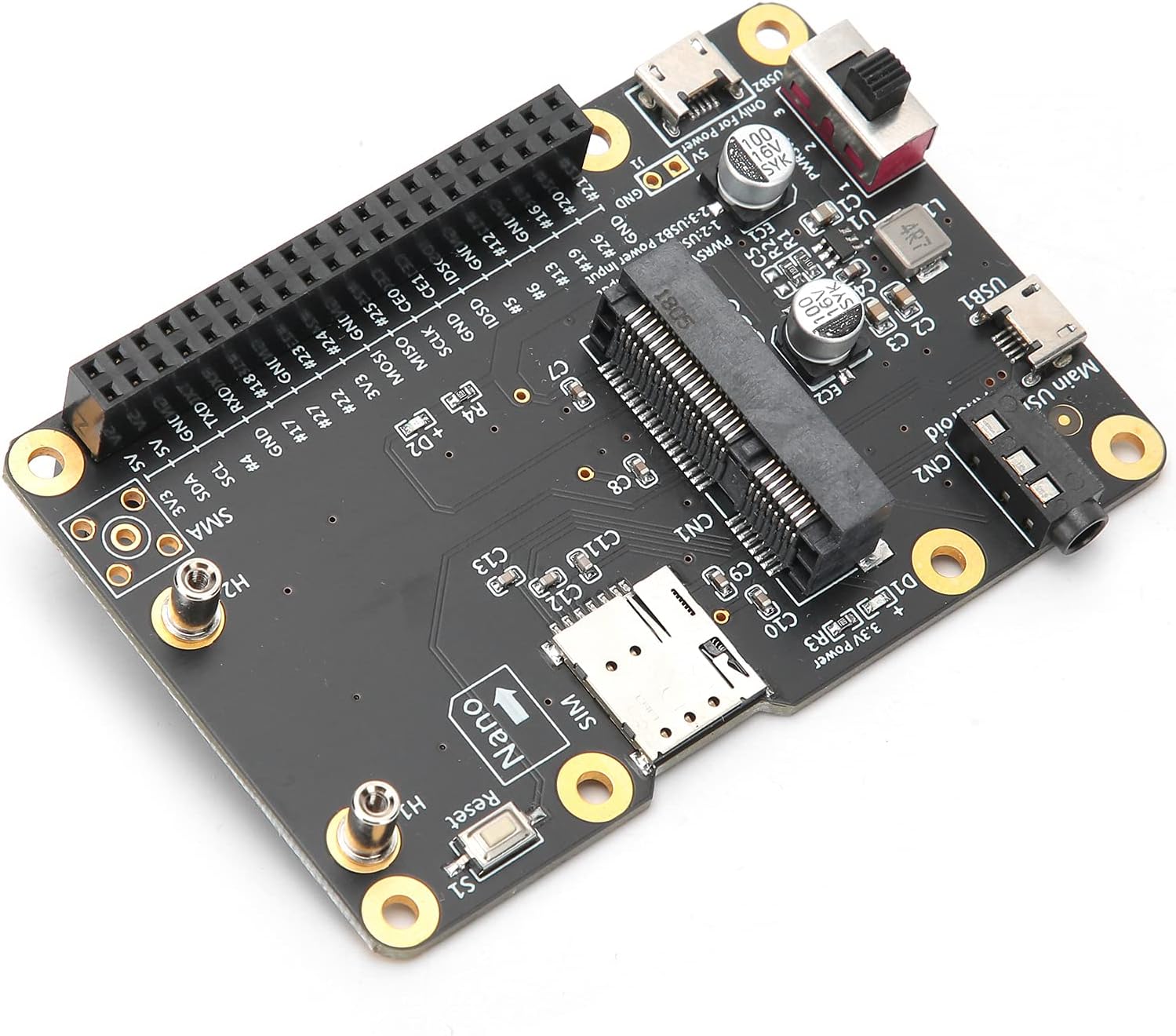

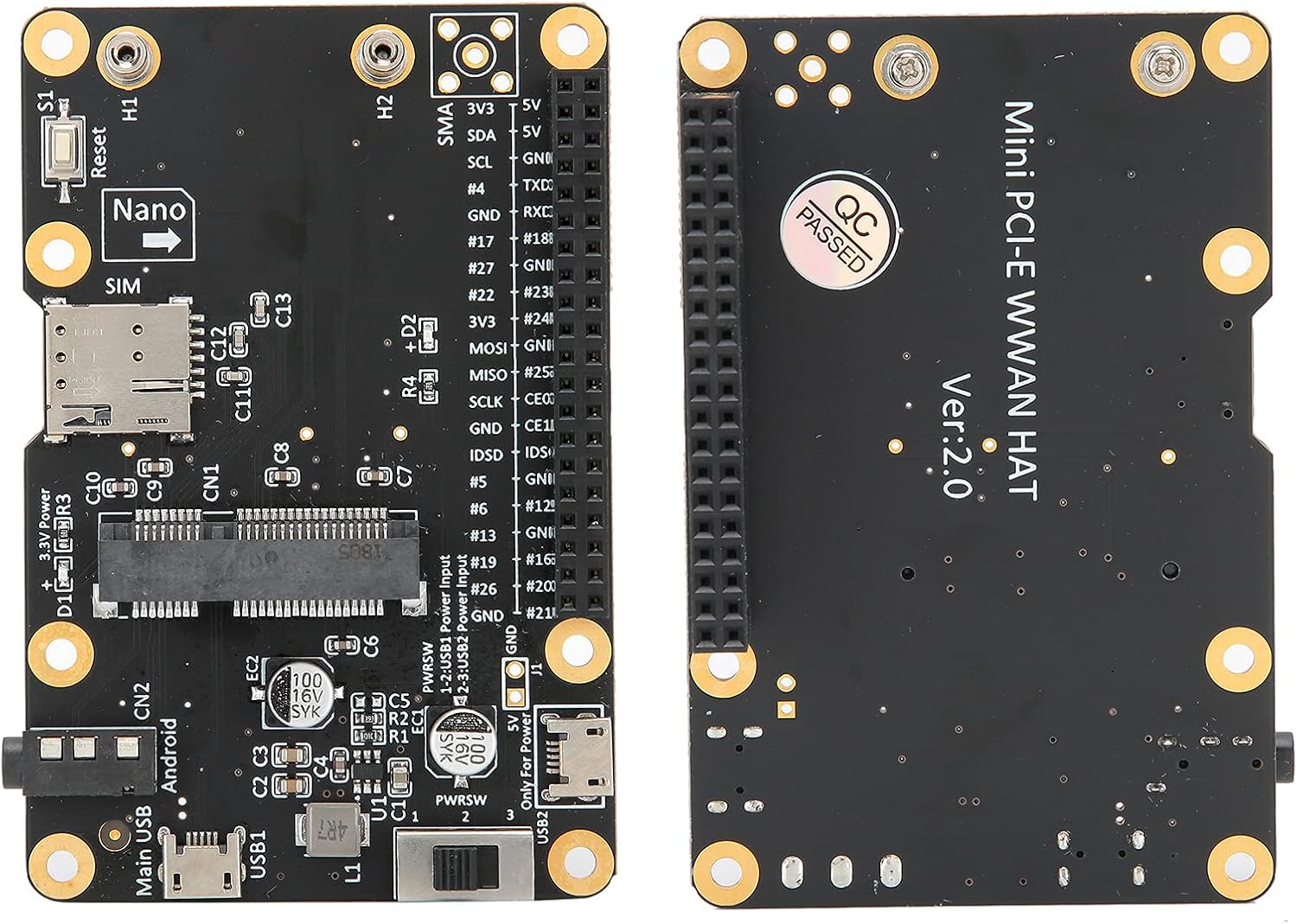

2025 New Model Raspberry Pi 3G 4G LTE Network Card Adapter, Raspberry Pi Network Card Expansion Card

Product Name:

2025 New Model Raspberry Pi 3G 4G LTE Network Card Adapter, Raspberry Pi Network Card Expansion Card

Number :

P-LTE01

Product Description:

2025 New Model Raspberry Pi 3G/4G/LTE Network Card Adapter, Raspberry Pi Network Card Expansion Card

APPLICABLE : Totally compatible with for 4/3/2/B+ with the 40-pin GPIO header

GOOD PERFORMANCE: Efficient and low quiescent current power circuit can support up to 3Amps.Working Temperature Range: -40℃ ~ 80℃

COMPATIBILITY: Clip‑in mini PCI‑E socket is compatible with worldwide LTE, for UMTS/HSPA+ and for GSM/GPRS/ coverage with regional or global modules which work with different frequencies and carriers

EASY TO USE: For NANO SIM card socket can easily reachable from the upside of the HAT.Can be used standalone with PC/Laptop over micro USB without stacking with for

Product Description

Specification:

Item Type: 3G/4G LTE Base Hat
Working Temperature Range: -40℃ ~ 80℃
Compatible with the Following Brand Boards:
1.For Raspberry Pi 4, 3, 2, B+
2.For Asus Tinker Board
3.For Rock 64
4.For Samsung ARTIK’s Board
5.For Latte Panda
Compatible with the Following Brand Mini PCI-E Modules:
For Quectel: EC25/EC21/ EC20 /UC20/ LTE-EP06
For : AirPrime MC Series
For Telit: LM960, LE910V2, HE910, LE910Cx
For : ME909s-120, ME909s-821, etc.
For Simcom: SIM7100, SIM7230, etc.
For ZTE: ZM8620, etc.
For U-Blox: MPCI-L2 Series
For Thales: PLS62W, mPLS8, mPLAS9
Size: Approx. 85 x 55mm / 3.3 x 2.2in
25mm / 1in

Package List:

1 x 3G/4G LTE Base Hat
1 x USB 2.0 to Micro USB Cable
1 x Screw Driver
1 x Accessories Package
