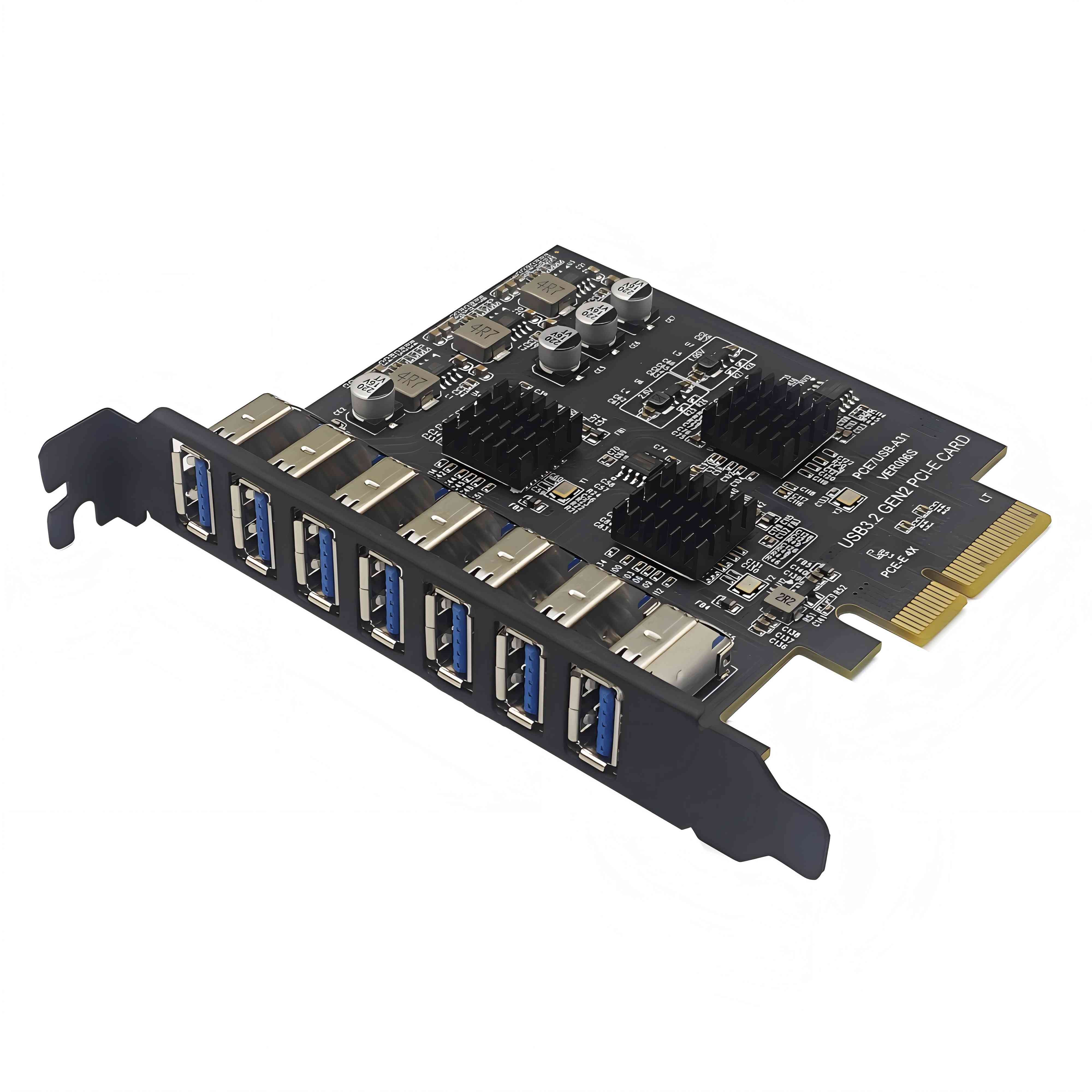

PCIE X4 to 7port USB3.2 Gen 2 10Gb expansion add on card

Product Name:

PCIE X4 to 7port USB3.2 Gen 2 10Gb expansion add on card

Number :

PCE7USB-A31

Product Description:

PCIE X4 to 7port USB3.2 Gen 2 10Gb expansion add on card

Product Model
Model Number	PCE7USB-A31
Warranty Information
Warranty	18 months
Hardware
Bus Type	PCI Express
Card Type	Standard Profile
Chipset ID	ASM3142+2*VL822-Q7
Industry Standards	USB 3.2 Specification Rev. 1.0
	PCI Express Base Specification Rev. 3.0
	Intel xHCI Specification Rev. 1.0
	UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface	USB 3.2 Gen 2
Port Style	Integrated add on Card
Ports	7Port USB3.2 A
Performance
Maximum Data Transfer Rate	10Gbps
Type and Rate	USB 3.2 Gen 2- 10 Gbit/s
UASP Support	Yes
Connector(s)
Connector Type(s)	1 - PCI Express x4 Male
External Ports
Internal Ports
Internal Ports	7- USB Type A 3.2 Gen 2 * 10Gb
Software
OS Compatibility	Windows 10 (32/64), 11(32/64)Linux. MAC
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
System and Cable Requirements	PCI Express enabled computer or server with an available PCI Express x4 slot or higher (, x8, x16)
System and Cable Requirements
Package content
Included in Package	1 - PCI Express USB 3.2 Gen type A Card
Included in Package	1 - Driver CD
