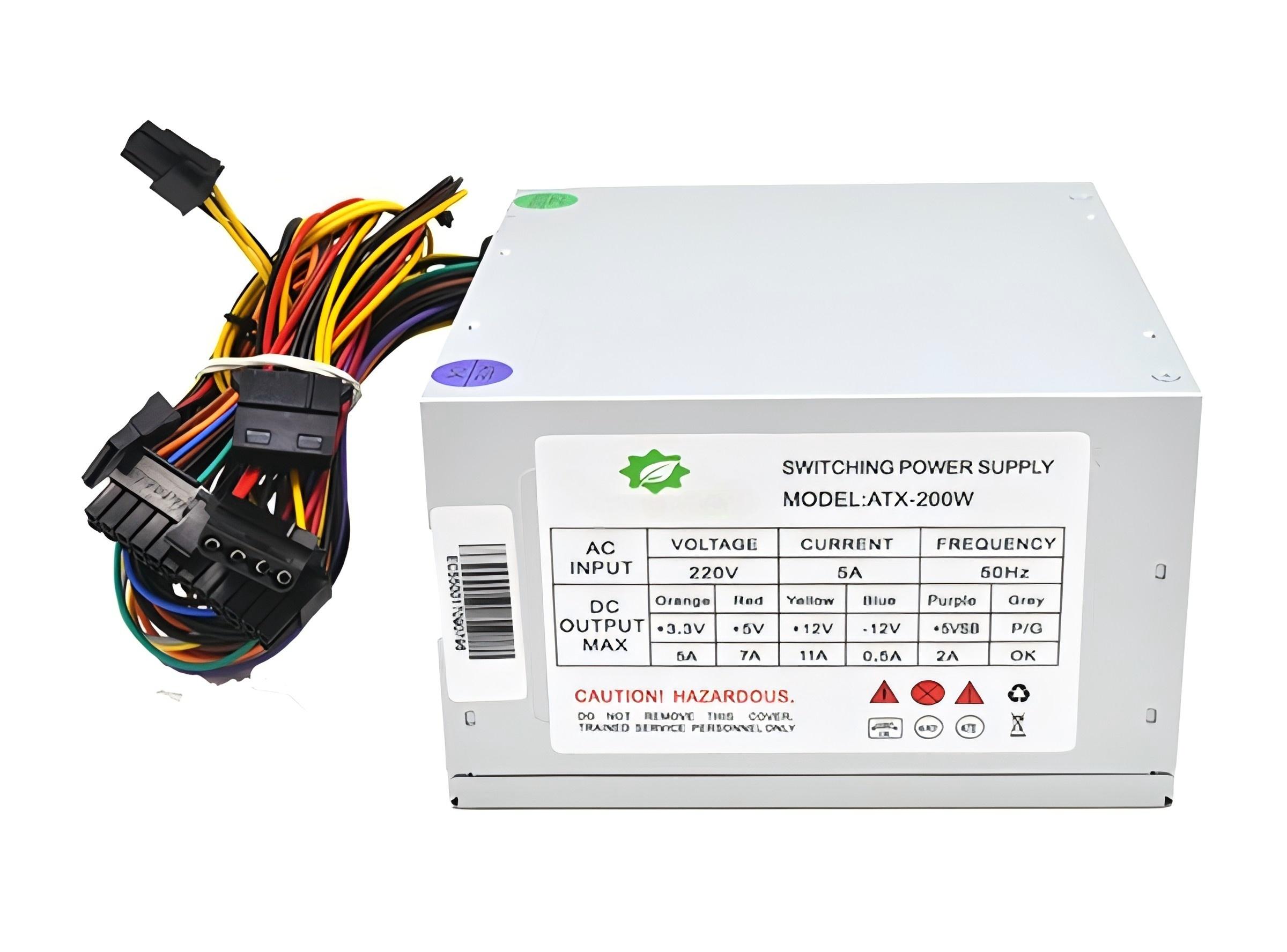

PC 220V ATX-200W Power Supply

Product Name:

PC 220V ATX-200W Power Supply

Number :

ATX-200W

Product Description:

PC 220V ATX-200W Power Supply

Product Name：

ATX-200W

Product Model：

ATX-200W

Model Number: ATX-200W
Output Power: 200W
Input Voltage: 220V
Efficiency: 75%
Output Frequency: 50-60Hz
PFC Type: Passive PFC
Cooling: 80mm fan
Housing Color: White
Housing Material: SECC
Housing Size: 150*140*85mm
Circuit Protection: OPP/OCP/OVP
Temperature Control: No
I / O Switch: No
Power Cord: Yes
Package: 10PCS/box
Pins:
M/B(20+4P): 1(exposed 300mm)
CPU(4P): 1(exposed 350mm)
SATA : 2(exposed 450mm)
Molex 4Pin: 4(exposed 300mm)

AC INPUT	VOLTAGE		CURRENT		FREQUENCY
	220V		5A		50Hz
DC OUTPUT MAX	Orange	Red	Yellow	Blue	Purple	Grey
	+3.3V	+5V	+12V	-12V	+5VSB	P/G
	5A	7A	11A	0.5A	2A	OK
