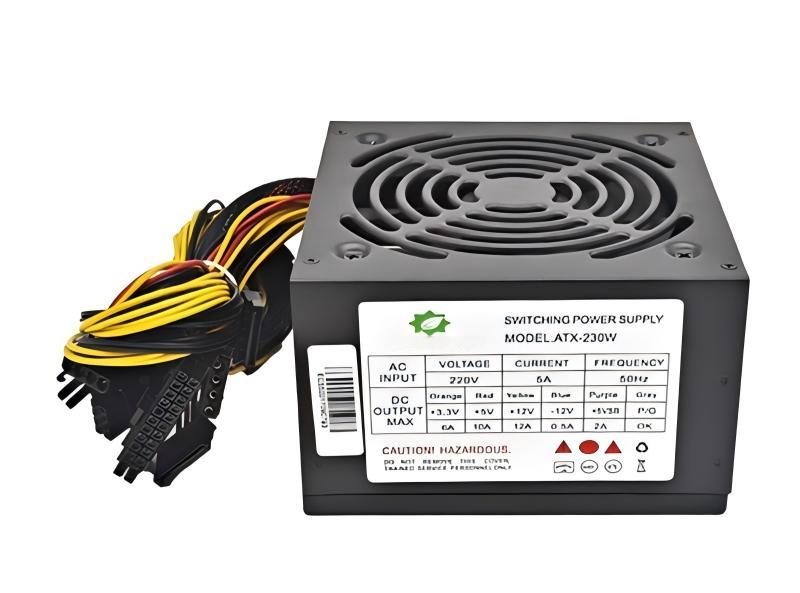

PC 220V ATX-230W Switching Power Supply

Product Name:

PC 220V ATX-230W Switching Power Supply

Number :

ATX-230W

Product Description:

PC 220V ATX-230W Switching Power Supply

Product Name：

ATX-230W

Product Model：

ATX-230W

Model Number: ATX-230W
Output Power: 230W
Input Voltage: 220V
Efficiency: 75%
Output Frequency: 50-60Hz
PFC Type: Passive PFC
Cooling: 120mm fan
Housing Color: Black
Housing Material: SECC
Housing Size: 150*140*85mm
Circuit Protection: OPP/OCP/OVP
Temperature Control: Yes
I / O Switch : Yes
Power Cord: Yes
Package: 10 PCS/box
Pins:
M/B(20+4P): 1(exposed 350mm)
PCI-(6+2)P: 1(exposed 350mm)
SATA: 2(exposed 450mm)
Molex 4Pin: 2(exposed 300mm)

AC INPUT	VOLTAGE		CURRENT		FREQUENCY
AC INPUT	220V		5A		50Hz
DC OUTPUT MAX	Orange	Red	Yellow	Blue	Purple	Grey
	+3.3V	+5V	+12V	-12V	+5VSB	P/G
	5A	7A	11A	0.5A	2A	OK
	+3.3V	+5V	+12V	-12V	+5VSB	P/G
	5A	7A	11A	0.5A	2A	OK
