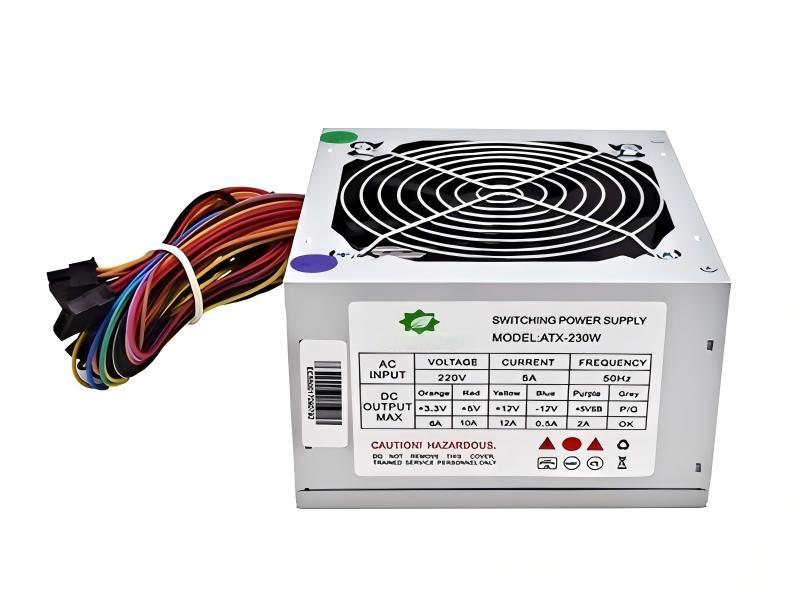

PC 220V ATX-230W Power Supply
Product Name:
PC 220V ATX-230W Power Supply
Number :
ATX-230W-1
:
:

Product Description:

PC 220V ATX-230W  Power Supply

Product Name: ATX-230W-1
Product Model: ATX-230W-1
Model Number: ATX-230W-1
Output Power: 230W
Input Voltage: 220V
Efficiency: 75%
Output Frequency: 50-60Hz
PFC Type: Passive PFC
Cooling: 120mm fan
Housing Color: Silver
Housing Material: SECC
Housing Size: 150*140*85mm
Circuit Protection: OPP/OCP/OVP
Temperature Control: Yes
I / O Switch : No
Power Cord: Yes
Housing Size: 150*140*85mm
Package: 10PCS/box
Pins:
M/B(20+4P): 1(exposed 320mm)
CPU(4P): 1(exposed 320mm)
SATA: 2(exposed 320mm)
IDE: 2(exposed 320mm)




AC INPUT

VOLTAGE

CURRENT

FREQUENCY

220V

5A

50Hz

DC

OUTPUT

MAX

Orange

Red

Yellow

Blue

Purple

Grey

+3.3V

+5V

+12V

-12V

+5VSB

P/G

6A

10A

12A

0.5A

2A

OK
