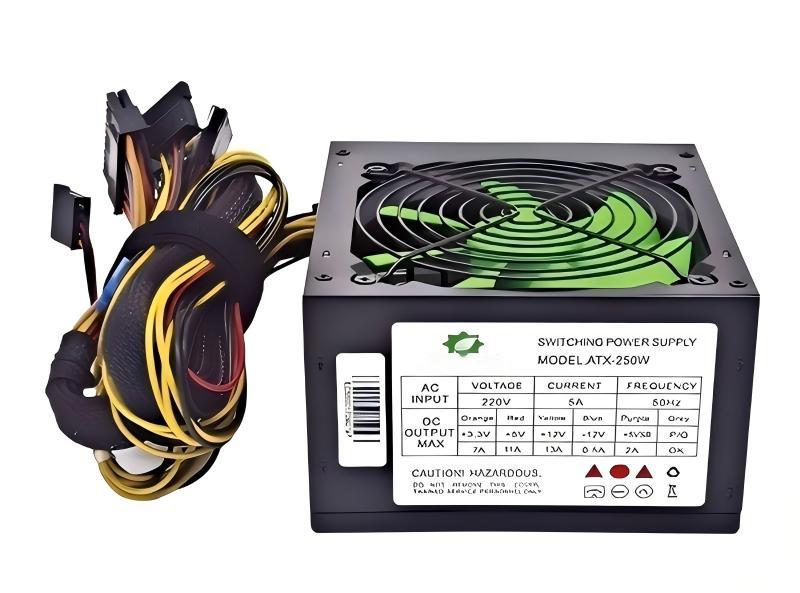

PC 220V ATX-250W Power Supply
Product Name:
PC 220V ATX-250W Power Supply
Number :
ATX-250W
:
:

Product Description:

 PC 220V ATX-250W  Power Supply

Product Name: ATX-250W
Product Model: ATX-250W
Output Power: 250W
Input Voltage: 220V
Efficiency: 75%
Output Frequency: 50-60Hz
PFC Type: Passive PFC
Cooling: 120mm fan
Housing Color: Black
Housing Material: SECC
Housing Size: 150*140*85mm
Certificate: No
Circuit Protection: OPP/OCP/OVP
Temperature Control: Yes
I / O Switch : No
Power Cord: Yes
Package: 10PCS/box
Pins:
M/B(20+4): 1(exposed 380mm)
CPU(4P+4P): 1(exposed 430mm)
PCI-E(6): 1(exposed 430mm)
SATA: 3(exposed 380mm)
Molex 4Pin: 2(exposed 380mm)



AC

INPUT

VOLTAGE

CURRENT

FREQUENCY

220V

5A

50Hz

DC

OUTPUT

MAX

Orange

Red

Yellow

Blue

Purple

Grey

+3.3V

+5V

+12V

-12V

+5VSB

P/G

7A

11A

13A

0.5A

2A

OK
