Panto Technology Co.,Limited

reliable & professional computer accessories supplier

1 2

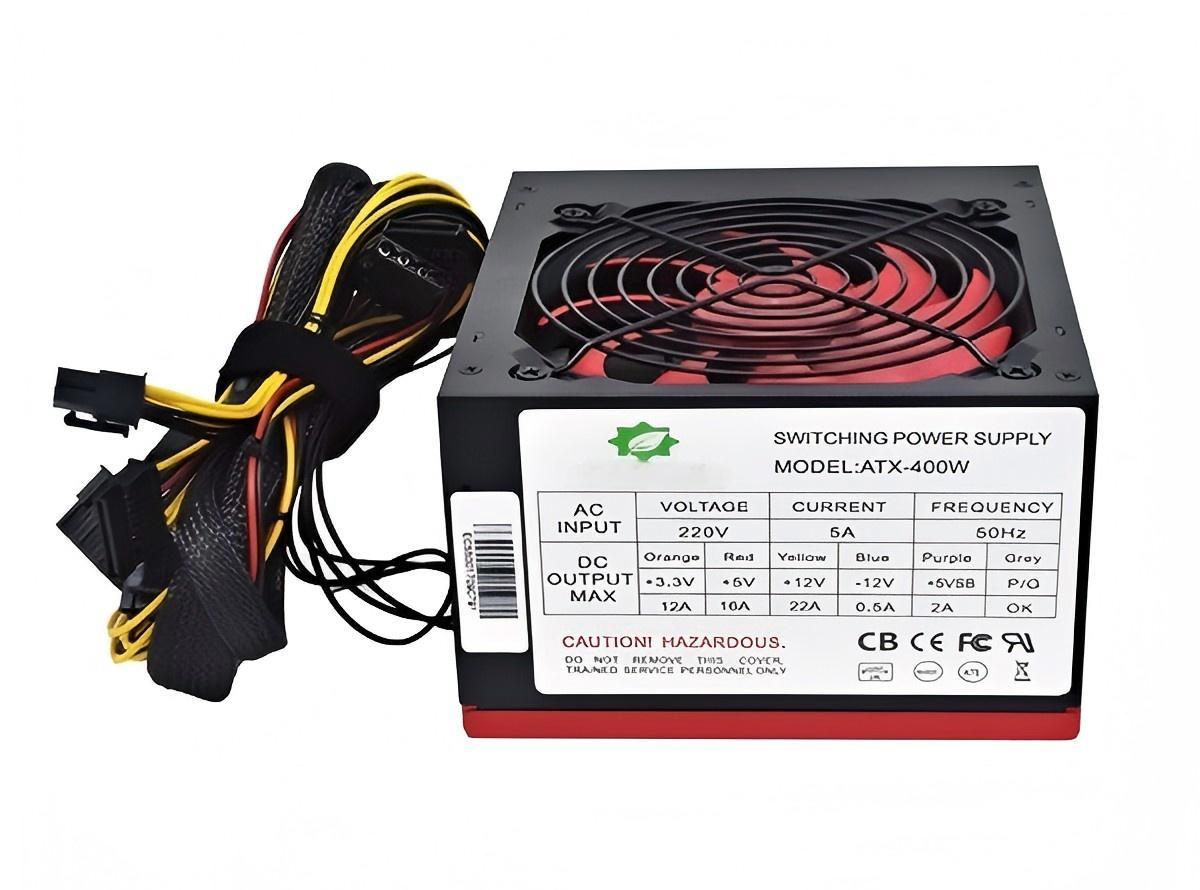

PC 220V ATX-400W Power Supply

Loading zoom

Product Name:

PC 220V ATX-400W Power Supply

Number :

ATX-400W

Product Description:

PC 220V ATX-400W Power Supply

Product Name：

ATX-400W

Product Model：

ATX-400W

Model Number: ATX-400W
Output Power: 400W
Input Voltage: 200V
Efficiency : 75%
Output Frequency: 50-60Hz
PFC Type: Active PFC
Cooling: 120mm fan
Housing Color: Black and Red
Housing Material: SECC
Housing Size: 150*140*80mm
Certificate: CE/CB
Circuit Protection: OPP/OCP/OVP
Temperature Control: Yes
I / O Switch: No
Power Cord: Yes
Package: 10PCS/box
Pins:
M/B(20+4P): 1(exposed 450mm)
CPU(4P+4P): 1(exposed 450mm)
PCI-(6+2)P: 1(exposed 450mm)
SATA : 4(exposed 450mm)
IDE: 2(exposed 450mm))

AC INPUT	VOLTAGE		CURRENT		FREQUENCY
	220V		5A		50Hz
DC OUTPUT MAX	Orange	Red	Yellow	Blue	Purple	Grey
	+3.3V	+5V	+12V	-12V	+5VSB	P/G
	12A	16A	22A	0.5A	2A	OK
