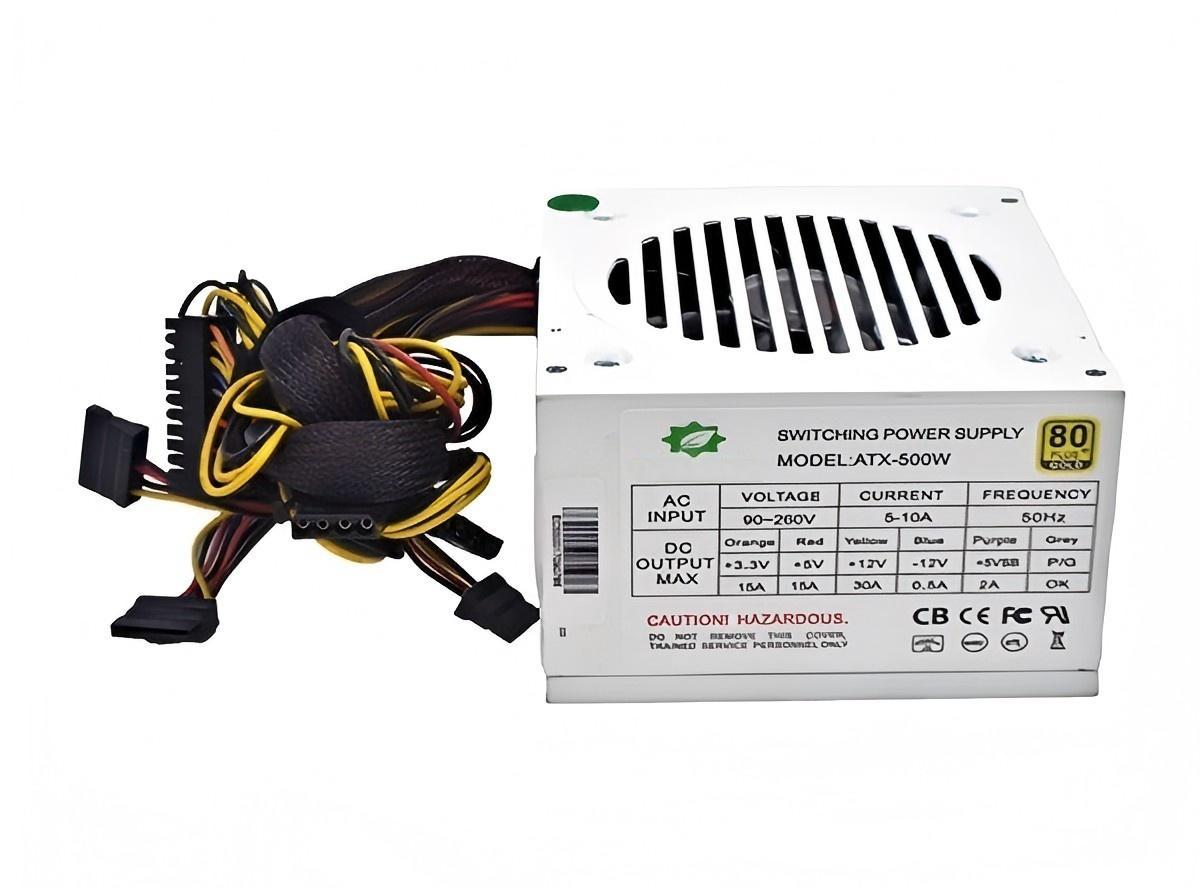

Full voltage 90~260V ATX-500W Power Supply
Product Name:
Full voltage 90~260V ATX-500W Power Supply
Number :
ATX-500W
:
:

Product Description:

Full voltage 90~260V ATX-500W Power Supply

Product Name: ATX-500W
Product Model: ATX-500W
Model Number: ATX-500W
Output Power: 500W
Input Voltage: 90-260V
Efficiency: 85%
Output Frequency: 50-60Hz
PFC Type: Active PFC
Cooling: 120mm fan
Housing Color: White
Housing Material: White
Housing Size: 150*140*85mm
Certificate: CE/CB
Circuit Protection: OPP/OCP/OVP
Temperature Control: Yes
I / O Switch: No
Power Cord: Yes
Package: 10PCS/box
Pins:
M/B(20+4P): 1(exposed 500mm)
CPU(4P+4P): 1(exposed 500mm)
PCI-(6+2)P: 2(exposed 500mm)
SATA: 4(exposed 500mm)
IDE: 2(exposed 500mm))


AC

INPUT

VOLTAGE

CURRENT

FREQUENCY

90-260V

5-10A

50Hz

DC

OUTPUT

MAX

Orange

Red

Yellow

Blue

Purple

Grey

+3.3V

+5V

+12V

-12V

+5VSB

P/G

15A

15A

30A

0.5A

2A

OK
