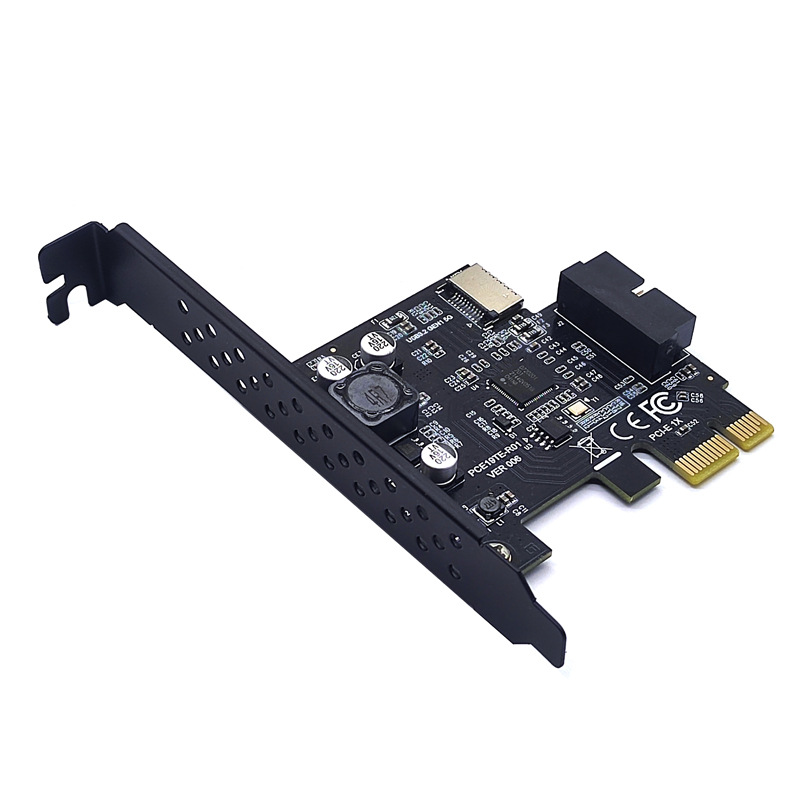

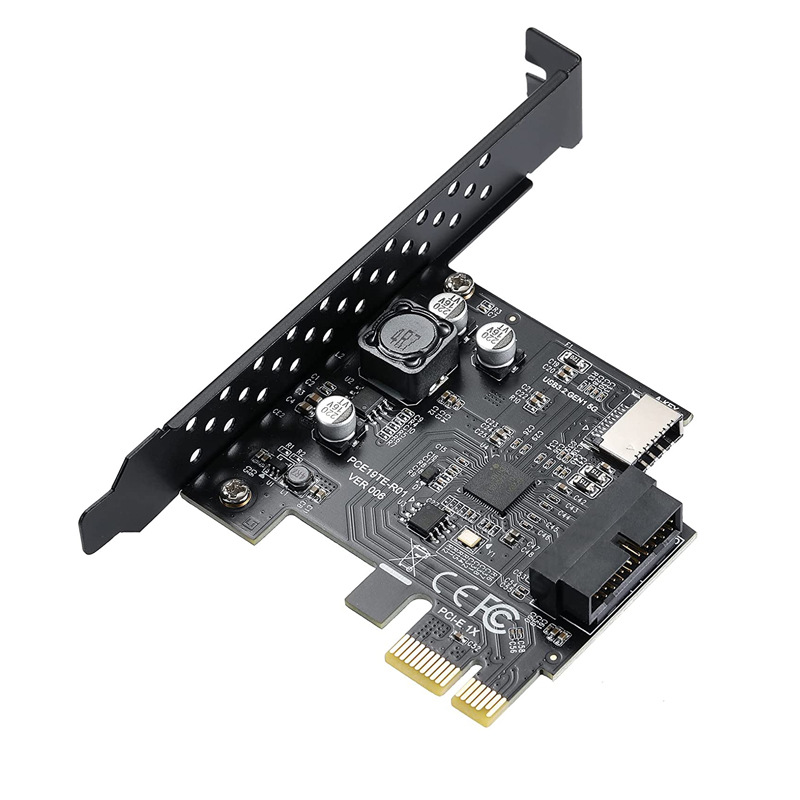

PCIE X1 to USB3.2 Gen 1 Type E Key A 5Gb with 19PIN USB Header expansion add on card

Product Name:

PCIE X1 to USB3.2 Gen 1 Type E Key A 5Gb with 19PIN USB Header expansion add on card

Number :

PCE19TE-R01

Product Description:

PCIE X1 to USB3.2 Gen 1 Type E Key A 5Gb with 19PIN USB Header expansion add on card

Product Model
Model Number	PCE19TE-R01
Warranty Information
Warranty	18 months
Hardware
Bus Type	PCI Express
Card Type	Standard Profile
Chipset ID	Renesas uPD720201 or ASM1042A
Industry Standards	USB 3.2 Specification Rev. 1.0
	PCI Express Base Specification Rev. 2.0
	Intel xHCI Specification Rev. 1.0
	UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface	USB 3.2 Gen 1
Port Style	Integrated add on Card
Ports	1Port USB3.2 Gen 1 type E
Performance
Maximum Data Transfer Rate	5Gbps
Type and Rate	USB 3.2 Gen 1- 5 Gbit/s
UASP Support	Yes
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports
Internal Ports
Internal Ports	1- USB Type E 3.2 Gen 1 * 5Gb
Software
OS Compatibility	Windows 10 (32/64), 11(32/64)Linux. MAC
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
System and Cable Requirements	PCI Express enabled computer or server with an available PCI Express x1 slot or higher (X4, x8, x16)
System and Cable Requirements
Package content
Included in Package	1 - PCI Express USB 3.2 Gen 1 type E Card
Included in Package	1 - Driver CD
