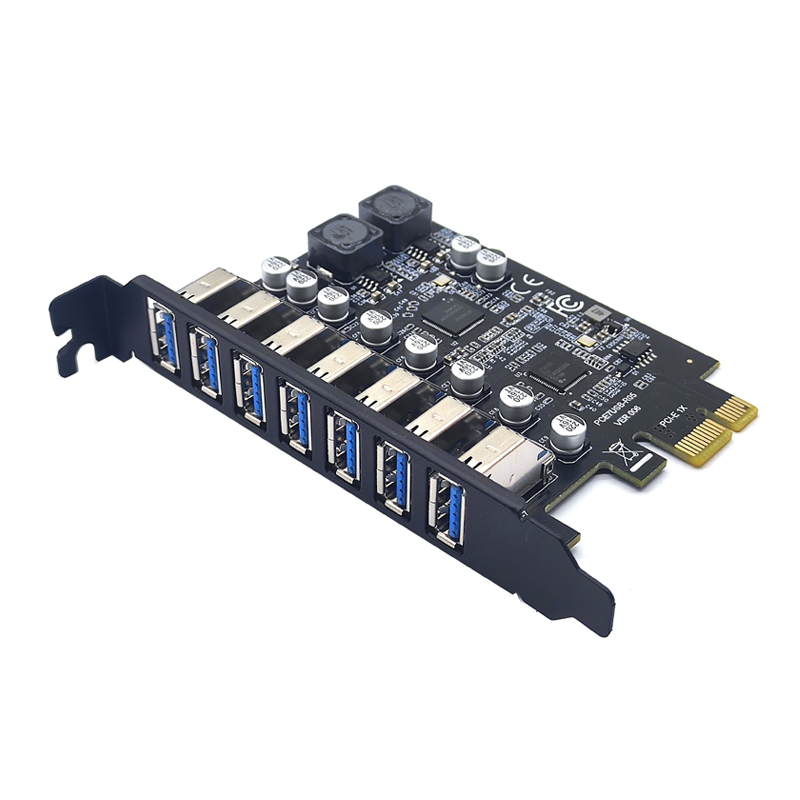

PCIE x1 to 7ports USB3.2 Gen 1 5GB expansion add on card

Product Name:

PCIE x1 to 7ports USB3.2 Gen 1 5GB expansion add on card

Number :

P-PCE7USB-R05

Product Description:

PCIE x1 to 7ports USB3.2 Gen 1 5GB expansion add on card

Product Model
Model Number	PCE7USB-R05
Warranty Information
Warranty	18 months
Hardware
Bus Type	PCI Express
Card Type	Standard Profile
Chipset ID	Renesas uPD720201+210
Industry Standards	USB 3.0 Specification Rev. 1.0
	PCI Express Base Specification Rev. 2.0
	Intel xHCI Specification Rev. 1.0
	UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface	USB 3.0
Port Style	Integrated on Card
Ports	7
Performance
Maximum Data Transfer Rate	5 Gbps
Type and Rate	USB 3.2 Gen1 - 5 Gbit/s
UASP Support	Yes
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	7 - USB 3.2 Gen1 A port (9 pin; 5Gbps) Female
Internal Ports	/
Software
OS Compatibility	Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), Linux
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps.
System and Cable Requirements	PCI Express enabled computer or server with an available PCI Express x1 slot or higher ( x4, x8, x16)
System and Cable Requirements	/
Package content
Included in Package	1 - 7 Port PCI Express USB 3.2 Gen1 Card
Included in Package	1 - Driver CD
