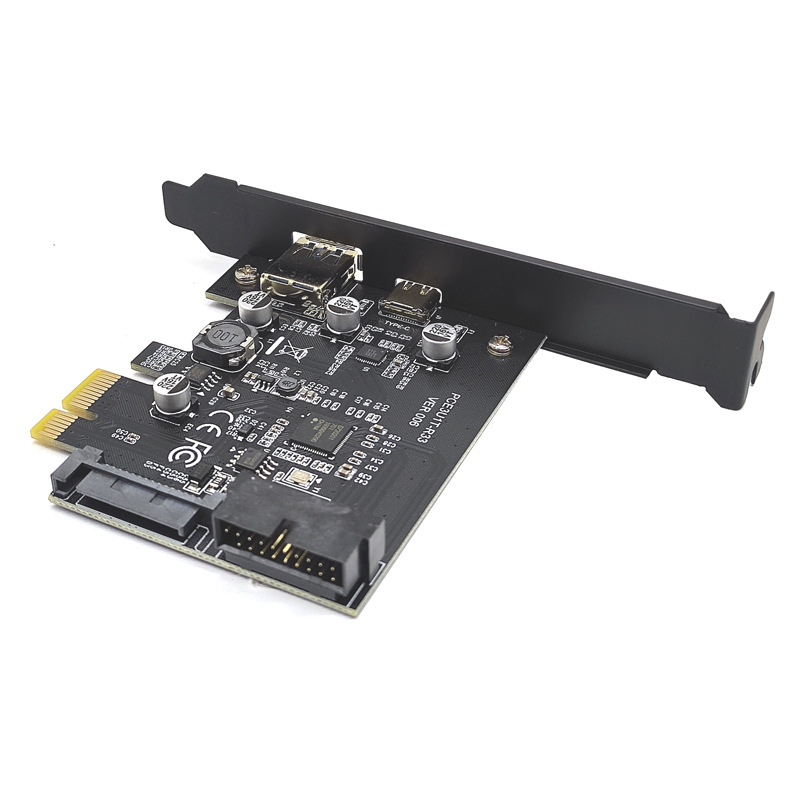

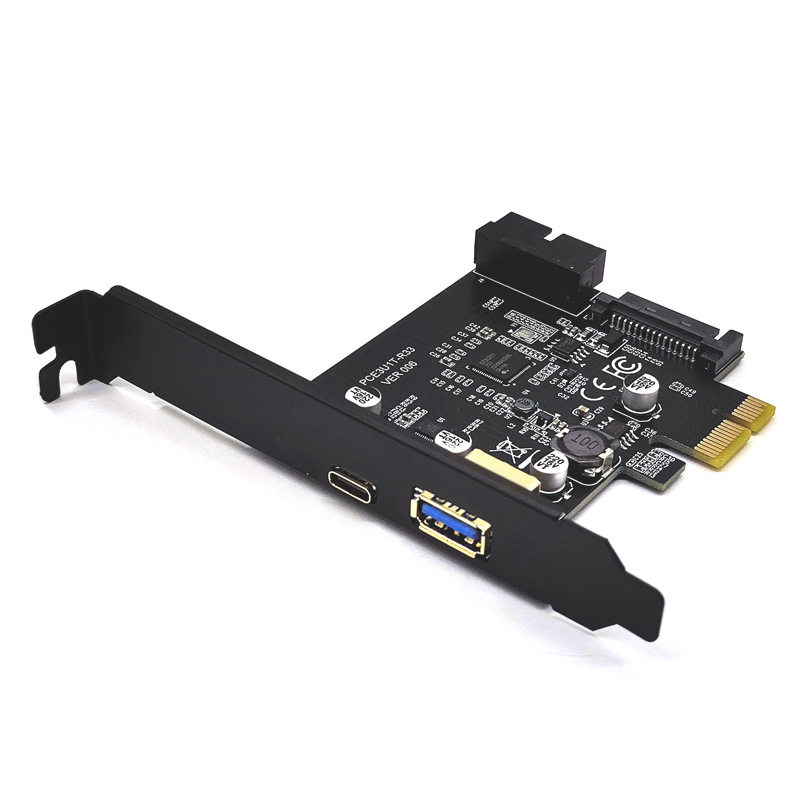

PCIE X1 to USB3.2 Gen 1 A+C with 19pin usb header expansioin add on card

Product Name:

PCIE X1 to USB3.2 Gen 1 A+C with 19pin usb header expansioin add on card

Number :

PCE3U1T-R33

Product Description:

PCIE X1 to USB3.2 Gen1 A+C with 19pin usb header expansioin add on card

Product Model
Model Number	PCE3U1T-R33
Warranty Information
Warranty	18 months
Hardware
Bus Type	PCI Express
Card Type	Standard Profile
Chipset ID	Renesas uPD720201
Industry Standards	USB 3.2 Specification Rev. 1.0
	PCI Express Base Specification Rev. 2.0
	Intel xHCI Specification Rev. 1.0
	UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface	USB 3.2 Gen 1
Port Style	Integrated add on Card
Ports	USB3.2 Gen 1 type A+C with 19pin USB header
Performance
Maximum Data Transfer Rate	5Gbps
Type and Rate	USB 3.2 Gen 1- 5 Gbit/s
UASP Support	Yes
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	1 - USB3.2 Gen1 A+C
Internal Ports	1-SATA 15pin
Internal Ports	1- USB 19pin header *5Gb
Software
OS Compatibility	Windows 10 (32/64), 11(32/64)Linux. MAC
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
System and Cable Requirements	PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x2,x4, x8, x16)
System and Cable Requirements
Package content
Included in Package	1 - PCI Express USB 3.2 Gen 1 type A+C with USB 19pin header Card
Included in Package	1 - Driver CD
