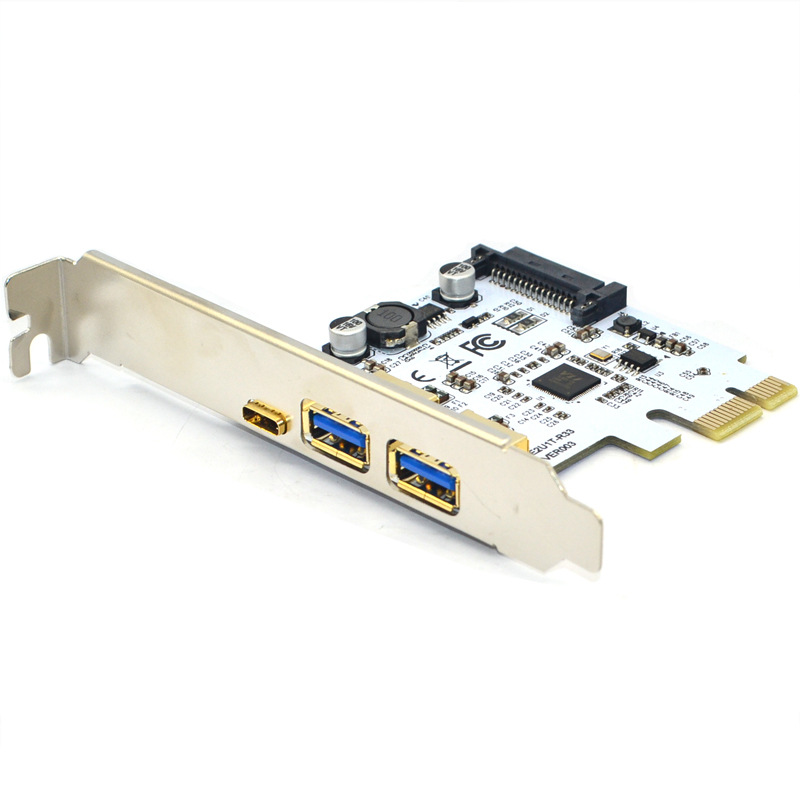

PCIE X1 to 2port USB3.2 Gen 1 A+C with SATA power expansioin add on card

Product Name:

PCIE X1 to 2port USB3.2 Gen 1 A+C with SATA power expansioin add on card

Number :

PCE2U1T-V01

Product Description:

PCIE X1 to 2port USB3.2 Gen 1 A+C with SATA power expansioin add on card

Product Model
Model Number	PCE2U1T-V01
Warranty Information
Warranty	18 months
Hardware
Bus Type	PCI Express
Card Type	Standard Profile
Chipset ID	VL815
Industry Standards	USB 3.2 Specification Rev. 1.0
	PCI Express Base Specification Rev. 2.0
	Intel xHCI Specification Rev. 1.0
	UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface	USB 3.2 Gen 1
Port Style	Integrated add on Card
Ports	2 port USB3.2 Gen 1 type A+C
Performance
Maximum Data Transfer Rate	5Gbps
Type and Rate	USB 3.2 Gen 1- 5 Gbit/s
UASP Support	Yes
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	2- USB3.2 Gen1 A+C
Internal Ports	1-SATA 15pin
Internal Ports	/
Software
OS Compatibility	Windows 10 (32/64), 11(32/64)Linux. MAC
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
System and Cable Requirements	PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x2,x4, x8, x16)
System and Cable Requirements
Package content
Included in Package	1 - PCI Express 2port USB 3.2 Gen 1 type A+C Card
Included in Package	1 - Driver CD
