USB 3.0 to NGFF M.2 key B 2280 SSD aluminium enclosure

Product Name:

USB 3.0 to NGFF M.2 key B 2280 SSD aluminium enclosure

Number :

P-LM-711N

Product Description:

USB 3.0 to NGFF M.2 key B 2280 SSD aluminium enclosure

Panto Technology Co.,Ltd
P-LM-711N Specification
Model:	P-LM-711N
Product Name:	NGFF(M.2) SSD Hard Disk Enclosure
Chipset:	ASM1053E
Key ID	Key B
Internal interface:	female Key B NGFF(M.2)
Output interface:	female Micro USB3.0
Transfer speed:	6Gbps
Material/Finish:	Aluminum with Oxidation/Sand Blasting
Product measure:	L97 x W39 x H9.5mm

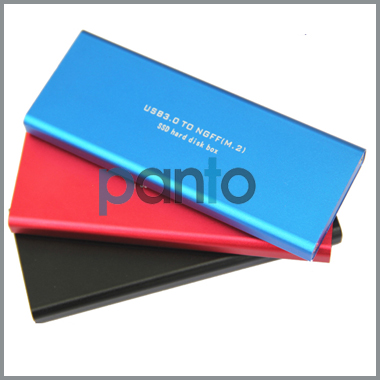

Color version:	Red;black; blue
Product weight:	42g
Suit for SSD hard disk version:	22 x 30mm/42mm/60mm/80mm NGFF(M.2)
UASP:	Support
OS support:	Win8.1/8/7/VISTA/XP/MAC/Linux, (free driver)
Operating Temperature:	5℃~40℃
Storage Temperature:	~20℃~70℃
Features and Specification:
Connects NGFF B Key SSD safely to computer via USB port
Compliant with PCI Express M.2 specification 1.0
Compliant with SATA 3.0 specification
Compliant with USB 3.0 specification
Supports data transfer up to 6.0Gb/s
Supports SATA-based NGFF SSD
Supports B Key NGFF SSD
Supports 2230, 2242, 2260 & 2280 size NGFF SSD
Easy installation & no driver required No additional power required
Support boot function
Supports Plug & Play and Hot-Swapping
Supports any OS, like Windows, WinCE & Linux etc
Please note that it supports SATA-based B Key SSD only.It does NOT support PCI-E based B key & any M key SSD
Packing details

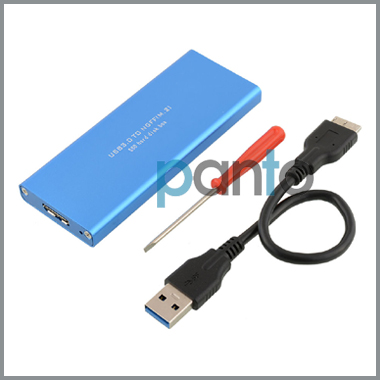

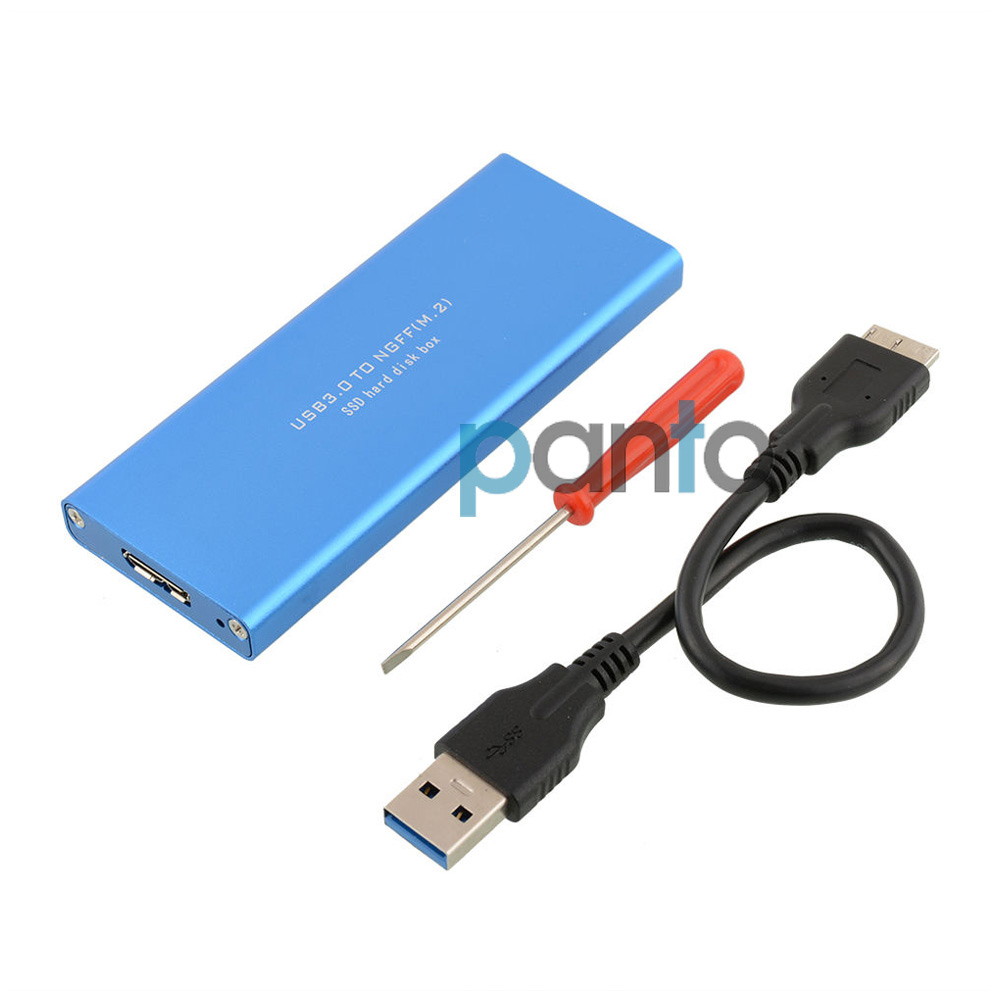

1.SSD Enclosure *1pcs
2.Male USB to Male Micro USB Cable *1pcs
3.Screwdriver*1pcs
4. Screws *2set
