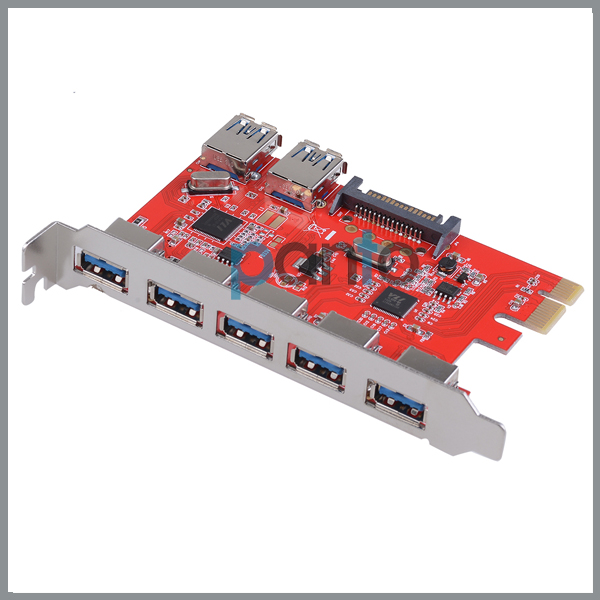

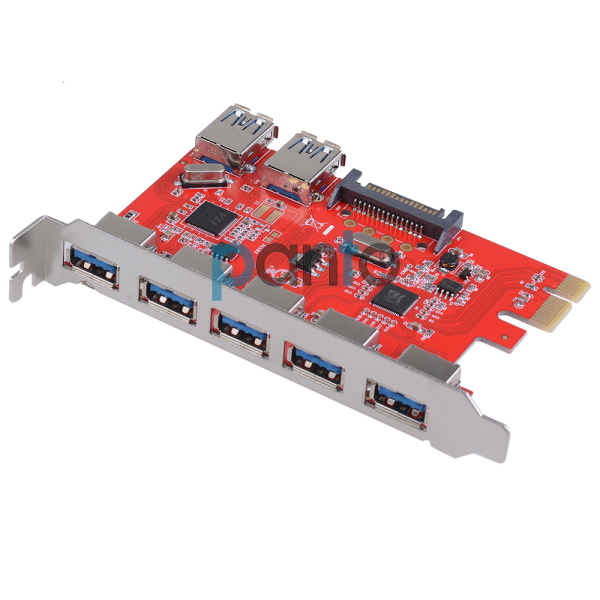

PCIE x1 to 7 ports USB3.0 expansion card
Product Name:
PCIE x1 to 7 ports USB3.0 expansion card
Number :
P-LTU352
:
:

Product Description:

PCIE x1 to 7 ports USB3.0  expansion card

Description
Upgrade your PC with support for the late in USB technology with a 7-Port SuperSpeed USB 3.0 PCI Express Adapter Controller Card. SuperSpeed USB 3.0 boasts data transfer rates of up to 5Gbps- more than 10X that of its predecessor. With quick and easy installation, you'll enjoy the lightning fast transfer rates of USB 3.0 devices performing at full speed potential.

Features and Specifications

Supports up to 7 USB 3.0 devices.
Compliant with USB 3.0 specification.
Compatible with USB 2.0 & 1.1 specification.
Date transfer rate up to 5.0Gbps / 625MB/s.
Compliant with Single-Lane (x1) PCI-Express specification revision 1.0a.
Supports 2.5Gbps PCI-E bus with full duplex channel.
Stable and reliable Chipset VLI VL812/VL805.
5 external +2 internal USB 3.0 type A female connectors.
Plug & play and hot swapping capability.
Bus-powered mode and no external power required for most of peripherals.
15 Pin SATA power connector available for some high current consumption peripherals or 3 above devices at the same time.
Support Windows XP / Vista / 7 / 8.

Package Includes:
1x 5-Port USB 3.0 PCI Express Controller Card
1x Installation CD

Note:
This device will take up 1 PCI-Express slot on your PC motherboard.
No power cable included in package, please use the SATA 15 pin peripheral power cable.
Installation driver is needed for operation (included in package).
Must turn off your computer before installation.
Some Windows 7/8 does not have native USB 3.0 drivers so to use any USB 3.0 port, you must check your manufacture website for the latest USB 3.0 driver.
This PCI-E card is powered by a SATA 15 Pin power connector. Please confirm that your computer motherboard is equipped with a SATA 15 pin power connector plug before purchasing. This is necessary to ensure sufficient power supply and smooth transfers, particularly for large data transfers from hard drive disks
