PCIE x4 to key B key M NGFF M.2 + SATA3.0 expansion card

Product Name:

PCIE x4 to key B key M NGFF M.2 + SATA3.0 expansion card

Number :

P-LM-412N

Product Description:

PCIE x4 to key B key M NGFF M.2 + SATA3.0 expansion card

Description

This adapter PCI Express card designed to connect one B key and one M key NGFF solid state drives to regular PCI SATA motherboard. Adapter converts B key to serial SATA interface and M key to PCI-E 4X socket. This adapter supports maximum transfer speed of 6Gb/s and does not require drivers.

Features and Specifications:

Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard.
Compliant with PCI Express M.2 specification 1.0.
Compliant with SATA 3.0 specification for B key.
Compliant with PCI-E 4X 3.0 specification for M key.
Supports data transfer up to 6.0Gb/s.
Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD.
Supports 2230, 2242, 2260 & 2280 size NGFF SSD.
One NGFF B Key and one NGFF M key sockets available.
8 screw holes 2230/2242/2260/2280 available to fix NGFF SSD cards.
Easy installation & no driver required.
No additional power required.
Support boot function.
Supports any OS, like Windows, WinCE, Mac & Linux etc.

Please Note:

For B key SSD the SATA 7 pin connector must be connected to motherboard.
For M key SSD there must be a 2.0 or higher PCI-E 4X socket.

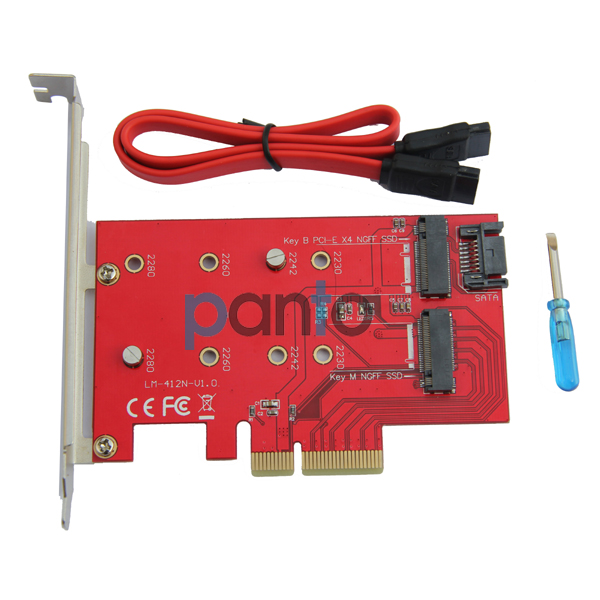

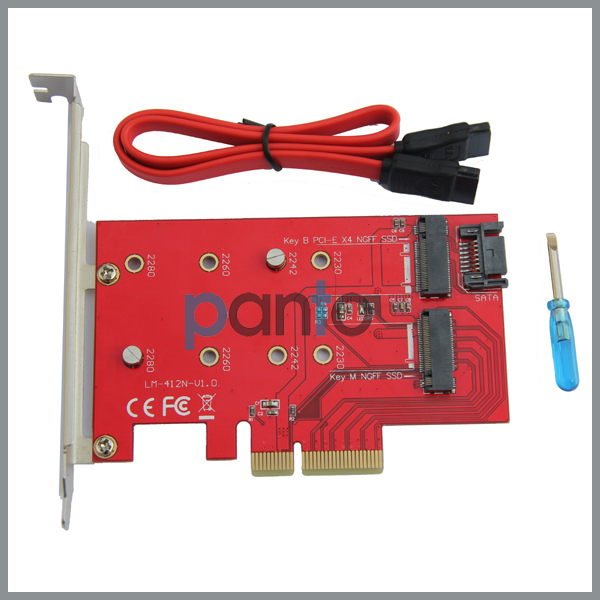

Package Content:

2 Port NGFF M.2 B + M Key to PCI-E 4X Adapter Card
Sata Cable
Screw driver
