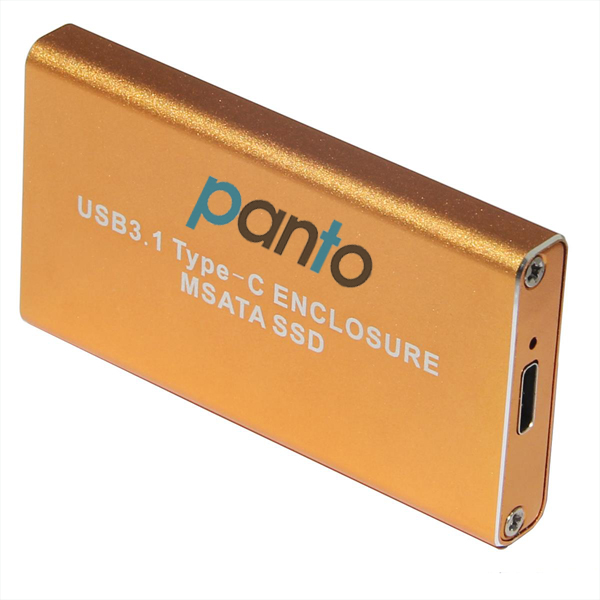

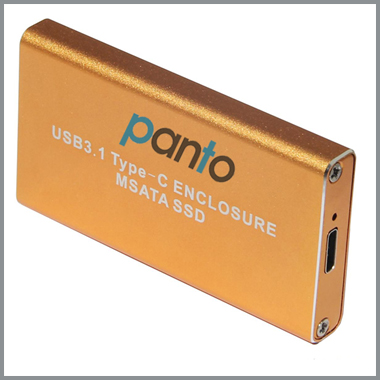

Aluminium USB3.1 type C to mSATA 3050 SSD Enclosure

Product Name:

Aluminium USB3.1 type C to mSATA 3050 SSD Enclosure

Number :

P-LS31-21M

Product Description:

Aluminium USB3.1 type C to mSATA 3050 SSD Enclosure

Panto technology Co.,Ltd
P-LS31-21M Specification
Model:	P-LS31-21M
Product Name:	USB3.1 Type-C to MSATA SSD Enclosure
Chipset:	ASM1352R
Internal interface:	female MSATA
Output interface:	USB3.1 Type C
Transfer speed:	10Gbps/5Gbps/480mbps
Enclosure material:	aluminum-magnesium alloy
Product measure:	L67 x W39 x H9.5mm
Color version:	Gold
Product weight:	30g
UASP	support
Applied SSD version:	3030/3050mm
OS support:	All WINDOWS/ Linux / Mac (free driver)
Features:
USB 3.1 a super fast and high-capacity data transfer solution.
Compliant with USB 3.1 specification.
Data transfer rate up to 10Gbps for USB 3.1.
Compliant with SATA 3.2 specification.
Data transfer rate up to 6.0Gbps for SATA 3.2.
Stable chipset ASM1352R
Supports 30mm half-height & 50mm full-height SSD.
No capacity limited for SSD card.
LED power indicators available.
Easy installation & no driver required.
No additional power required.
Support boot function.
Supports Plug & Play and Hot-Swapping.
Supports any OS, like Mac Windows, WinCE, Mac & Linux etc.
Please note that it supports mSATA Mini PCI-E SATA SSD only. It does NOT supports Mini PCI-E PATA, 1.8" Micro SATA & Airbook SSD.
Packing details
1.SSD Enclosure *1pcs
2.USB3.0 AM To Type-C 1(cable length:25CM) 1pcs
3.Screwdriver*1pcs
4. Screws *2set
