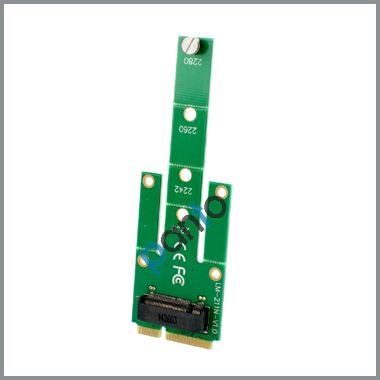

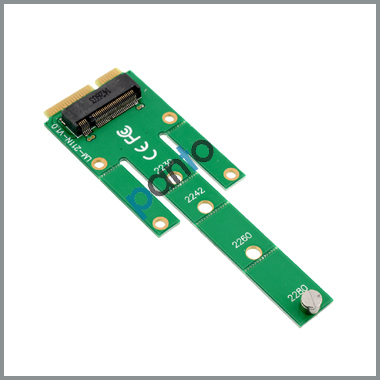

NGFF M.2 B Key SATA-Based SSD to MSATA Mini Male Converter Card

Product Name:

NGFF M.2 B Key SATA-Based SSD to MSATA Mini Male Converter Card

Number :

P-LM-211N

Product Description:

NGFF M.2 Key B SATA-Based SSD to MSATA Mini Male Converter Card

Connects NGFF B Key SSD to mSATA Mini PCI-E motherboard.
Compliant with PCI Express M.2 specification 1.0.
Compliant with SATA III specification.
Supports data transfer up to 6.0Gb/s.
Supports SATA-based NGFF SSD.
Supports B Key NGFF SSD.
Supports 2230, 2242, 2260 & 2280 size NGFF SSD.
One NGFF M.2 B Key socket and one mSATA Mini PCI-E male connector available.
4 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card.
4 screw holes available to fix PCB board.
Easy installation & no driver required.
No additional power required.
Support boot function.
Supports any OS, like Windows, WinCE & Linux etc.
Please note that it supports SATA-based B Key SSD only. It does NOT support PCI-E based B key & any M key SSD.

Package content:
1X NGFF M.2 Key B to mSATA Converter Card.
1X Screw Drive.
2X Screw.
