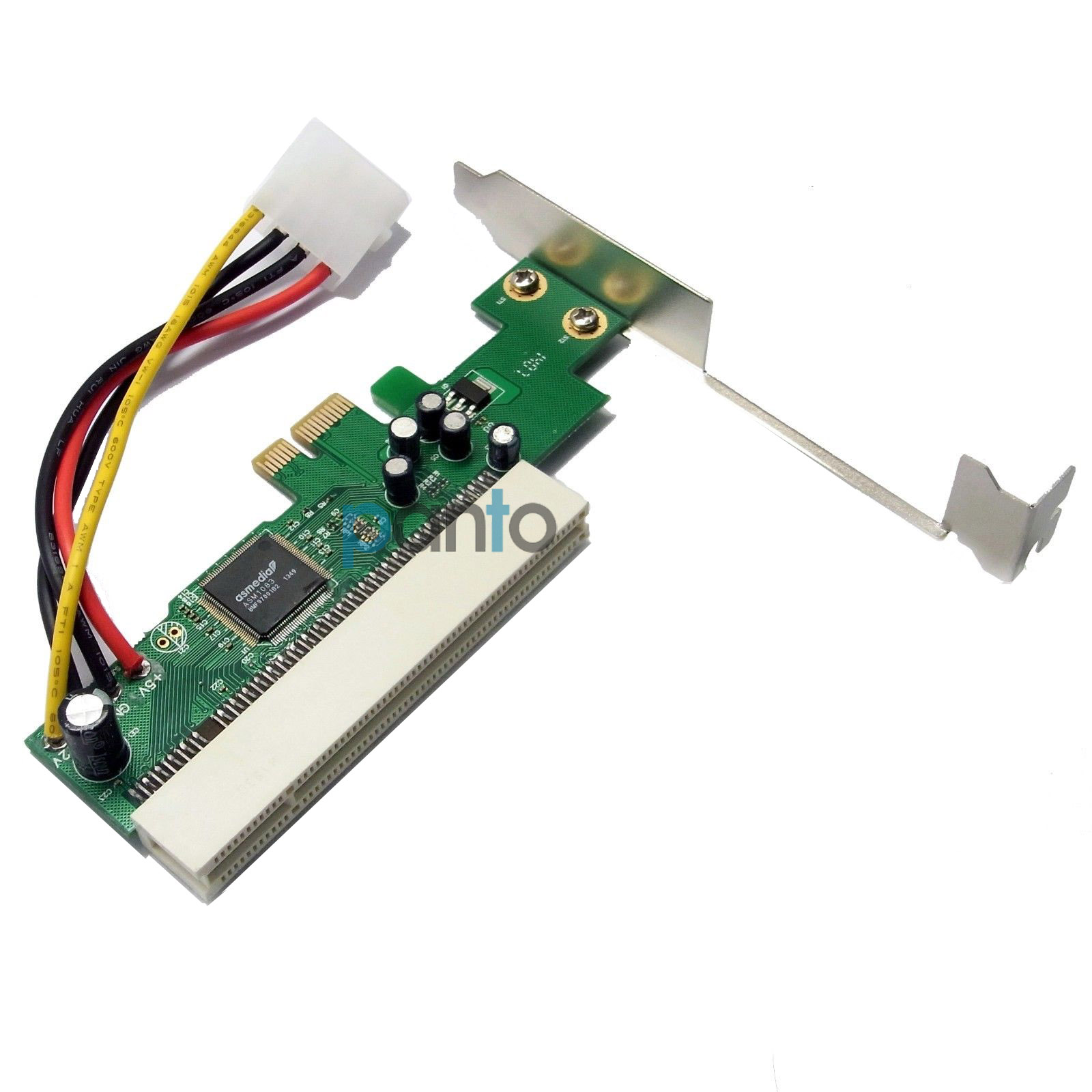

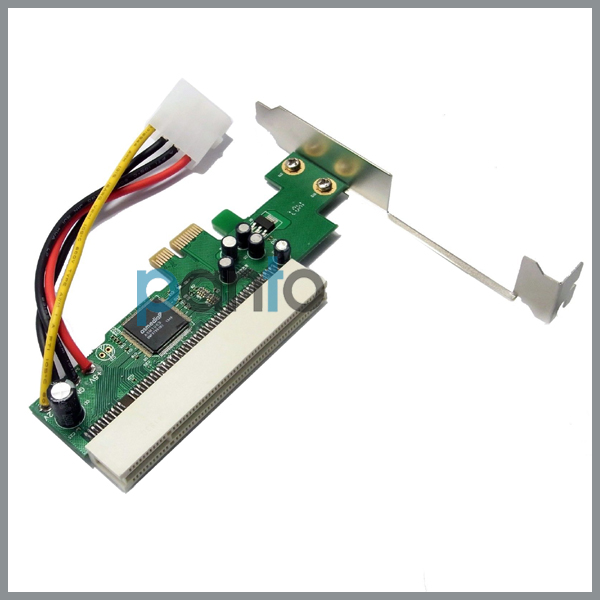

PCIE to PCI adapter card

Product Name:

PCIE to PCI adapter card

Number :

P-PEX1083

Product Description:

PCIE to PCI adapter card

Feature:

-This PCI-e to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot.
-Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCI-e 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
-A versatile solution, the adapter card converts PCI-e to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
-The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCI-e capable systems.
-To ensure suitable installation in any low profile server or desktop computer, the PCI-e/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.

Specification:

PCI Express 1 Lane Port (1 virtual channel).
5Gbps per direction2. Support PCI 32 bit 33MHz bus one slot
PCI Express Specification Version 1.0 Compliant
PCI Specification Version 2.3 Compliant
Combination low profile PCI 32 bit host card
Support PCI slot 3.3V/1A. 3.3Vaux/100mA. 5V/5A and 12V/500m
Provide 4 pin power connector (Support 12V and 5V - must insert with
power supply)
Support:Windows2000/NT/2003/XP/Vista/WIN7/WIN8/8.1/Linux

Package Contents

1*PCI-E to PCI/PCI-X Adapter
