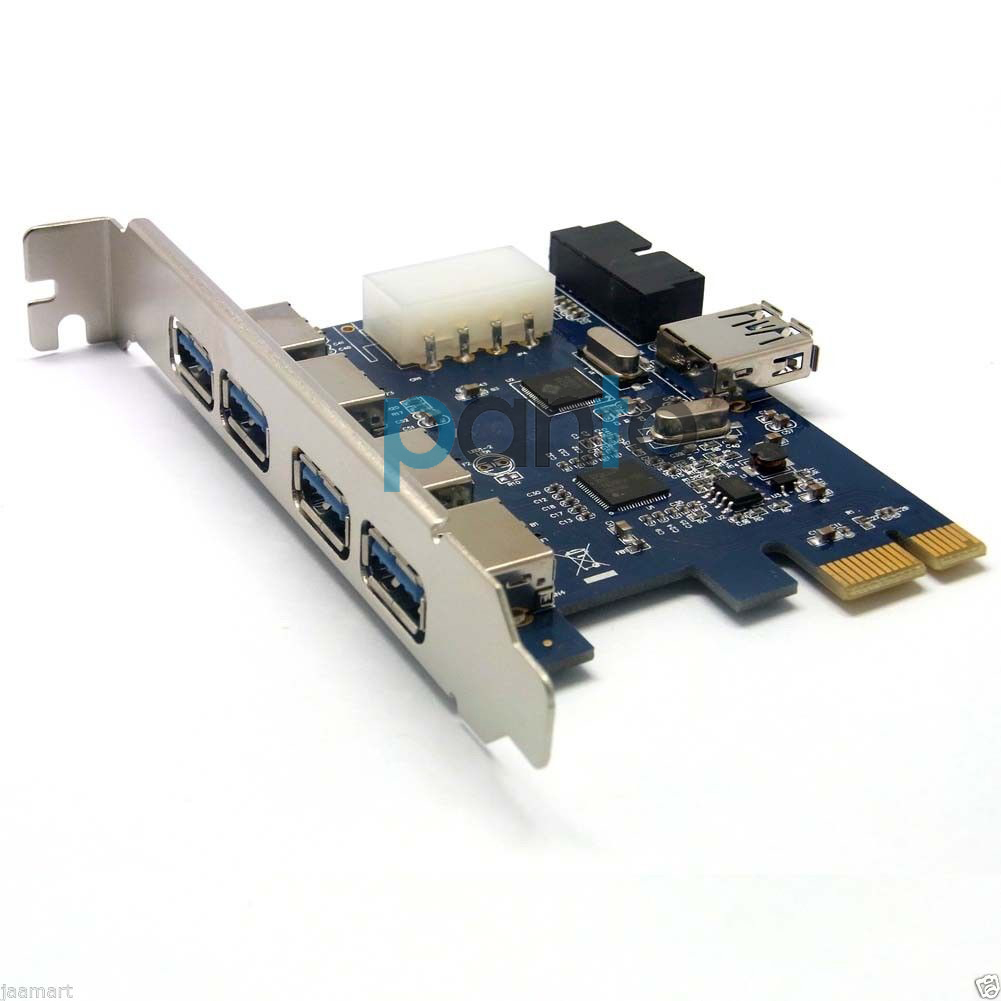

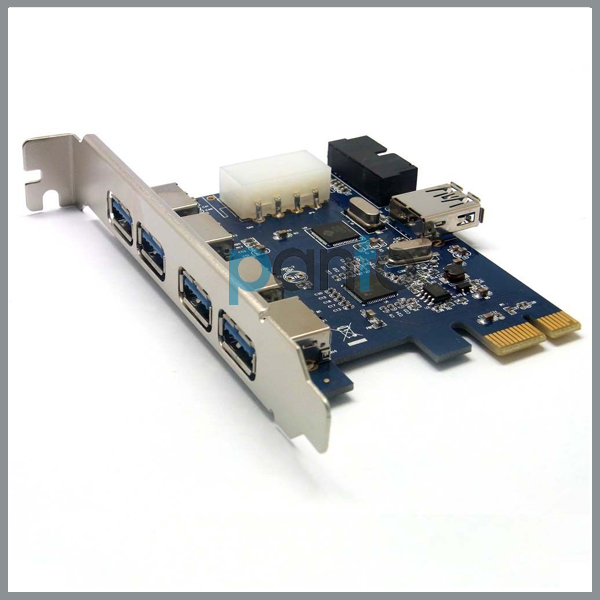

PCIE x1 to 5 port USB3.0 with 19pin USB header expansion card

Product Name:

PCIE x1 to 5 port USB3.0 with 19pin USB header expansion card

Number :

P-LTU37P

Product Description:

PCIE x1 to 5 port USB3.0 with 19pin USB header expansion card

Panto Technology Co.,Ltd
Model No.	P-LTU37P
Type	PCI express card
output	4 +1 USB3.0 port+19/20Pin USB3.0 header
USB transfer data speed	5Gbps
Power support	4 PIN connector
Chipset	VL805+GL3520
Color	Blue
Operating Temperature	10°C~40°C
Storage Temperature	-10°C~80°C
Key features:
1. Compatible with USB 2.0 and USB1.1 devices
2. Supports simultaneous operation of multiple USB 3.0 and USB 2.0 devices
3. Supports 2 downstream ports for all speeds
4. Bus-powered mode and no external power required for most of peripherals
5. Power connector available for high current consumption peripherals
6.4 external +1 internal+20pin 5Gbps Super Speed USB 3.0 Ports
7.Max. data transfer rate up to 5.0Gbps.
8.Fully compliant with Single-lane(x1) PCI Express 2.0 specification
9. 4 pin connector supports extra power, no external power is needed
10.Fully Plug & Play and Hot Swap Compatible connect
11.System Requirement: PCI-E Slot (Not fit in a standard PCI slot, only PCIe)
12.Drive support Window 2000 XP/VISTA/7/8
Packing Contents
1.PCI Express card *1pc
2.CD disk *1pc
