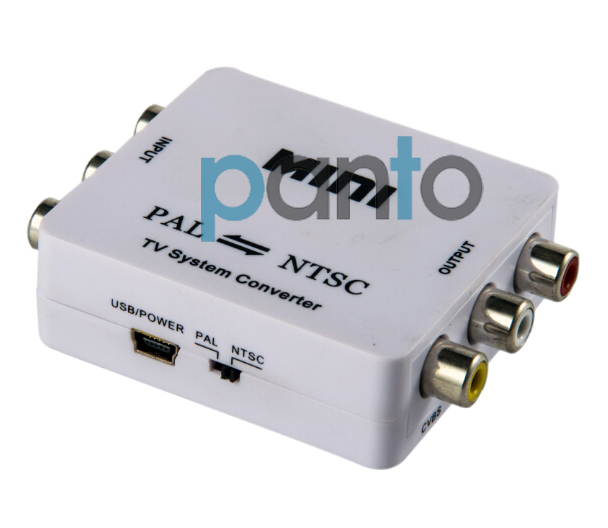

Mini PAL to NTSC TV system Converter

Product Name:

Mini PAL to NTSC TV system Converter

Number :

P-MT620

Product Description:

Mini PAL to NTSC TV system Converter

INTRODUCTION

The MINI TV System converter designed for the single-format video equipment (such as NTSC TV sets, projectors, PDP, projection, etc.) to achieve other format which show on TV. It digital transfer device using the most advanced all-digital way on TV and video format for processing, powerful functional and superior performance of the feature from many kinds of video signal formats (Including PAL, PAL60, NTSC3.58, NTSC4.43, SECAM) unified converted into PAL or NTSC standard signal output (as required by the user settings).

FEATURES

1. No need to install drivers, portable, flexible, plug and play.
2. Provides advanced signal processing with great precision, colors, resolutions, and details;
3. Support PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats input.
4. Support PAL, NTSC standard TV format output.

SPECIFICATIONS

1. Input ports: 1xRCA (Yellow, White, Red).
2. Output ports: 1xRCA (Yellow, White, Red).
3. Dimensions (mm): 72(D)x 55(W)x20(H)
4. Wight (g): 40g
5. Composite input: PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N.
6. Composite output: PAL, NTSC.

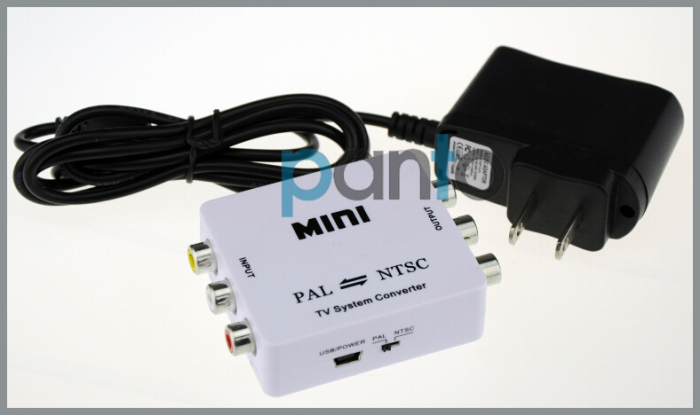

PACKAGE CONTENTS

1)Main unit (TV system Converter)-------------1PCS
2)USB Cable------------------------------------1 PCS
3)DC/5V POWER adapter -----------------------------1 PCS
4)User Manual (EN) --------------------------1 PCS
