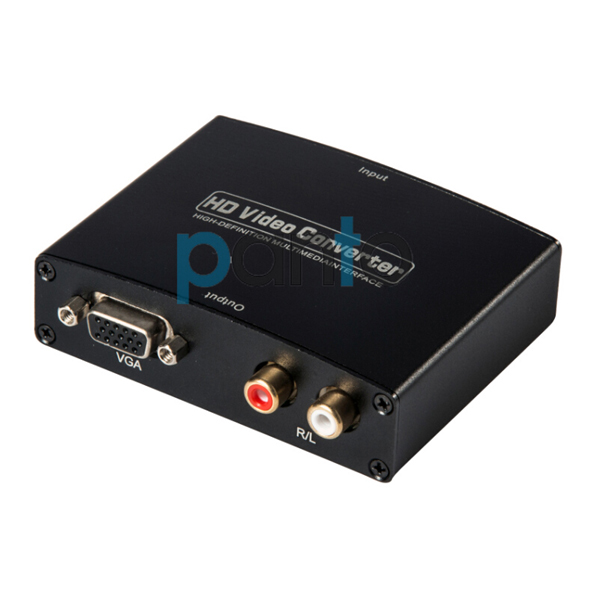

HDMI to VGA + R/L Audio Converter

Product Name:

HDMI to VGA + R/L Audio Converter

Number :

P-T601

Product Description:

HDMI to VGA + R/L Audio Converter

INTRODUCTION

This kind of HDMI to VGA+R/L Audio Converter converts digital HDMI signal into analog VGA video and R/L audio signal. It allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional VGA monitors or projectors.

It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

The series of the HDMI Amplifier Switcher have many features that enable them to perform in a superior manner. among those features you will find:
1.Easy to Use: Install in seconds, no need of setting.
2.Conversion: It could convert complete HDMI into VGA video and R/L audio output.
3.Support HDCP 1.2
4.Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input.
5.Suppor Analogue Video output up to UXGA and 1080p with 10-bit DAC
6.Led indicates signal and power mode.
7.Power supply (please refer to technical parameter).

SPECIFICATIONS

Signal Inputs/Output
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Input connection	HDMI A female(19pin)
Output connection	VGA, R/L Audio
HDMI video input format	480i/576i/480p/576p/720p/1080i/1080P
VGA video output format	480i/576i/480p/576p/720p/1080i/1080P
Audio output format	2 channel LPCM
Operating Frequency
Vertical FrequencyRange	50/60Hz
Input video Amplifier Bandwidth	1.65Gbps/165MHz
Mechanical
Size(LxWxH)	88x68x25.5mm
Weight(Net)	0.68Kg
Warranty
Limited Warranty	1 Year Parts and Labor
Environmentalc
Operating Temperature	0 to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10 to +80℃
Storage Humidity	5% to 95 % RH (no condensation)
Power Requirement
External Power Supply	DC 5V 1A
Power consumption(Max)	5W
Regulatory Approvals
Converter Unit	CE,FCC,ROHS
Power Supply	CE,FCC,PSE,TK,UL

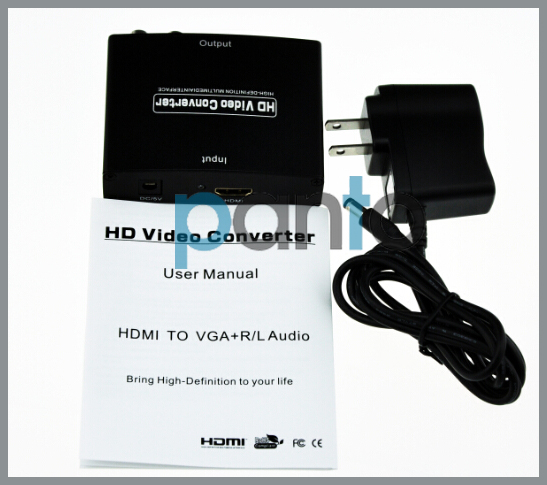

Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version
