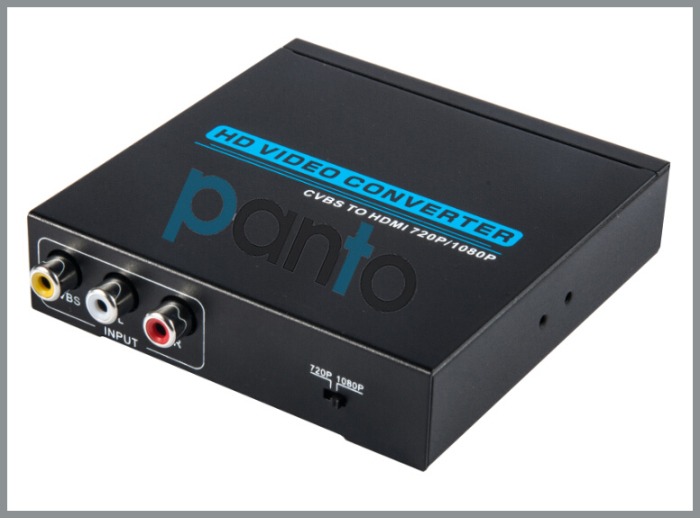

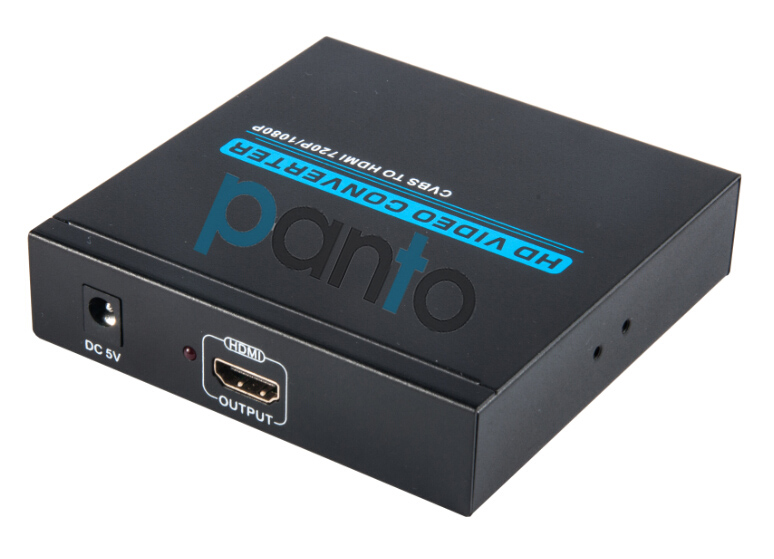

AV (CVBS) to HDMI converter

Product Name:

AV (CVBS) to HDMI converter

Number :

P-T607

Product Description:

AV (CVBS) to HDMI converter

FEATURES

1. Hardware conversion, plug and play without any software driver
2. Compatible HDMI1.3
3. Support NTSC and PAL two standard TV formats
4. One HDMI input, one AV output, one stereo output
Inputs: HDMI x 1
Outputs: CVBS x 1; L / R x 1
5. HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
6. compatible with DVI mode 800x600,1024x768,1280x720,1280x1024，1920x1080/@60hz
7. Support the HDCP protocol, support for HDMI 1.3
8. CVBS output: 480I, 576I
9. Audio output: L/R channels
10.HDMI OUTPUT: BYPASS HDMI
11.Dimensions：100mm(W)x115mm(D)x 25mm(H)

PACKAGE CONTENTS

1.CVBS TO HDMI CONVERTER---------------1 Pcs
2.User manual-------------------------------------1 Pcs
3.Power supply-------------------------------------1 Pcs
