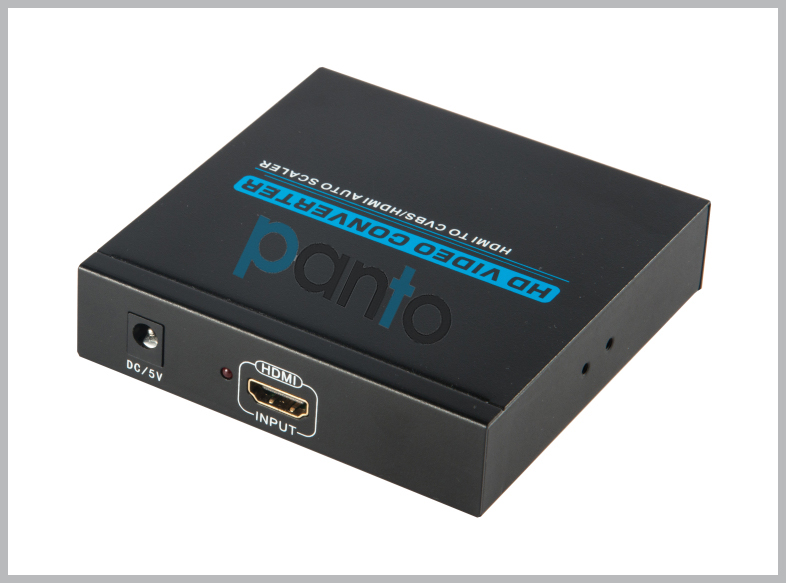

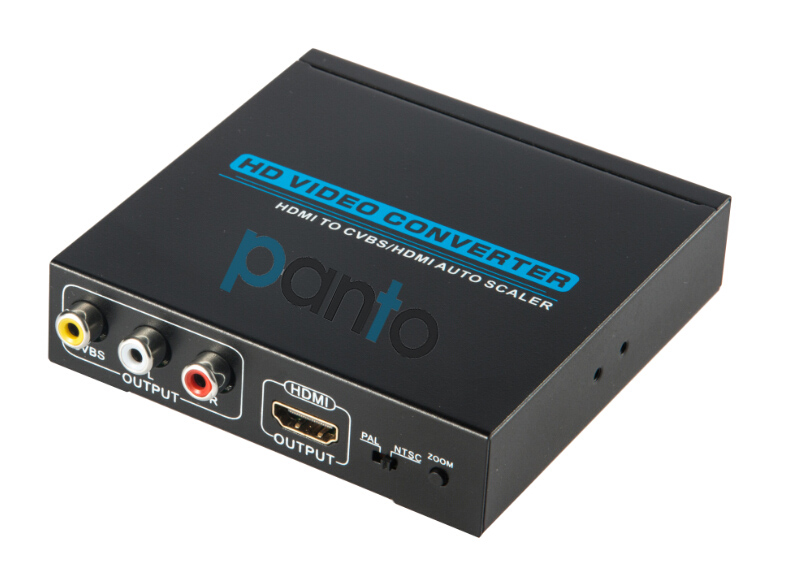

HDMI TO CVBS + HDMI CONVERTER

INTRODUCTION

HDMI to CVBS signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, and HDMI signals. while support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.


FEATURES

1. Hardware conversion, plug and play without any software driver

2. Compatible HDMI1.3

3. Support NTSC and PAL two standard TV formats

4. One HDMI input, one AV output, one stereo output

   Inputs: HDMI x 1

   Outputs: CVBS x 1; L / R x 1 HDMI x 1

5. HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz

6. compatible with DVI mode 800x600,1024x768,1280x720,1280x1024，1920x1080/@60hz

7. Support the HDCP protocol, support for HDMI 1.3

8. CVBS output: 480I, 576I

9. Audio output: L/R channels

10.HDMI OUTPUT: BYPASS HDMI

11.Dimensions：100mm(W)x115mm(D)x 25mm(H)

PACKAGING CONTENTS

1.HDMI TO CVBS/HDMI CONVERTER---------------1 Pcs

2.User manual---------------------------------------------1 Pcs

3.Power supply--------------------------------------------1 Pcs
