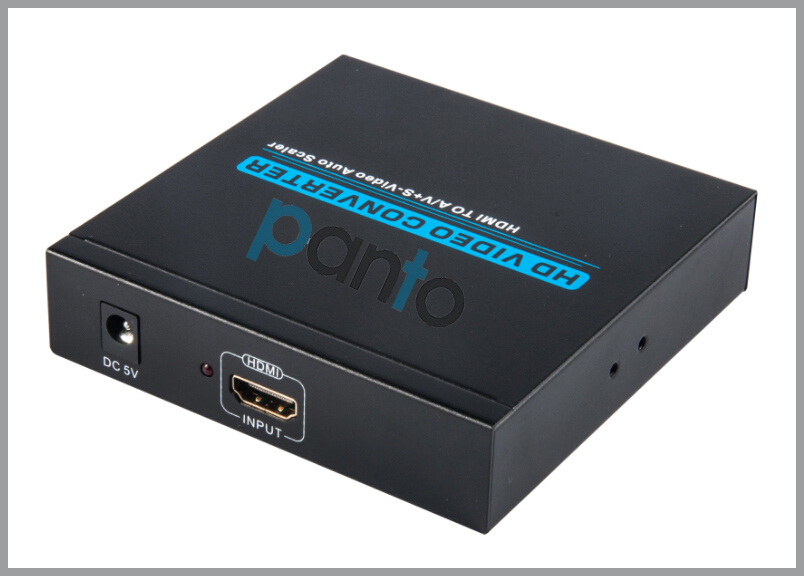

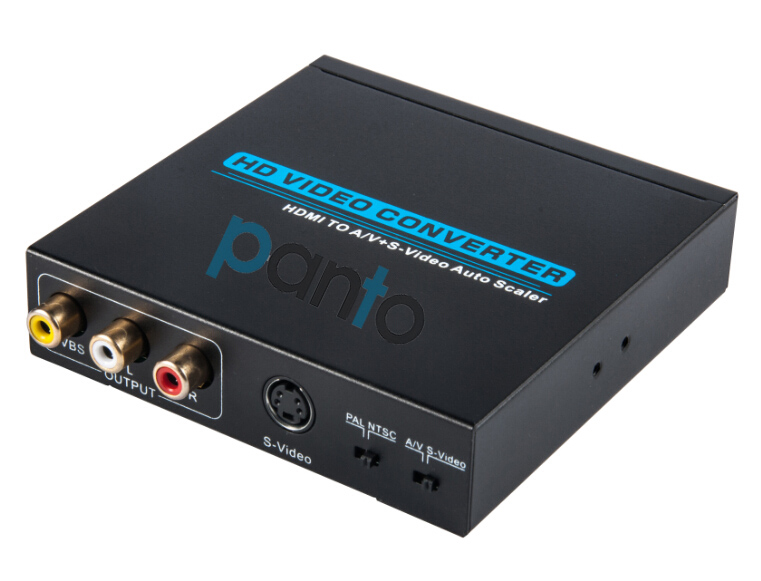

HDMI TO AV + S-Video converter
Product Name:
HDMI TO AV + S-Video converter
Number :
P-T618
:
:

Product Description:

HDMI TO AV + S-Video converter

Introduction

HDMI to CVBS or S-video signal converter which will convert HDMI video signal or audio
signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, and s-video signals. while support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,) or s-video signal. So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.

Features

1. Hardware conversion, plug and play without any software driver

2. Compatible HDMI1.3

3. Support NTSC and PAL two standard TV formats

4. One HDMI input, one AV output, one stereo output

    Inputs: HDMI x 1

    Outputs: CVBS x 1; L / R x 1 S-video x 1

5. HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz

6. compatible with DVI mode 800x600,1024x768,1280x720,1280x1024,1920x1080/@60hz

7. Support the HDCP protocol, support for HDMI 1.3

8. CVBS output: 480I, 576I

9. Audio output: L/R channels

10.S-video OUTPUT: bypass

11.Dimensions:100mm(W)x115mm(D)x 25mm(H)

Package contents:

1.HDMI TO CVBS/S-Video CONVERTER----------------1 Pcs

2.User manual--------------------------------------------1 Pcs

3.Power supply-------------------------------------------1 Pcs
